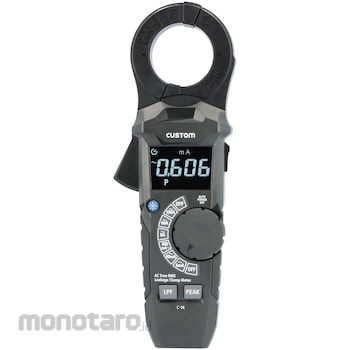

A clamp meter with a low-pass filter that can measure load current to leakage current. True RMS measurement type that can accurately measure even distorted waveforms. The clamp shape is a perfect circle and the maximum measurement conductor diameter is Φ32mm.
With LPF/PEAK measurement/HOLD function Supports operation in dark places (dial, indicator, LCD, and operation buttons light up)
The flashlight illuminates even dark places.
Safety inspection of building electrical facilities and home appliances/office equipment (leak current detection)
Load Current Measurement
* We do not deliver to private homes (detached houses / apartments).
Custom AC Leak Clamp Meter (with calibration certificate, inspection report, and traceability)
#Grup produk P113813359
Spesifikasi
| AC Current | Range 6mA 50-60Hz: ±(1.0% + 8 dgt), LPF: ±(1.5% + 8 dgt)/Range 60, 600mA, 6A 50-60Hz: ±(1.0% + 5 dgt), LPF: ±(1.5% + 8 dgt)/Range 60A 50-60Hz: ±(1.5% + 8 dgt), LPF: ±(1.5% + 8 dgt)/Range 100A 50-60Hz: ±(1.5% + 8 dgt), LPF: ±(2.0% + 8 dgt) |
|---|---|
| Applicable Standard | EN61010-1/IEC6101010-2-032 CAT.III AC300V |
| Battery Life | Approximately 23 hours of continuous use |
| Dimensions, Width W x Height H x Depth D (mm) | Approximately 85x233x45 |
| Display | 6000 counts |
| Included Accessories | Instruction manual (with warranty), soft case |
| Mass (g) | Approx. 360 (including batteries) |
| Minimum Resolution | 0.001mA |
| Operating Humidity (%RH) | 80 or less (no condensation) |
| Operating Temperature (°C) | 5~40 |
| Polarity Display | Automatic switching \"-\" sign only |
| Power Supply | 3 x AAA batteries (batteries sold separately) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Sampling | Approximately 5 times/second |
| Storage Humidity (%RH) | 80 or less (no condensation) |
| Storage Temperature (°C) | -20 ~ +60 |
| Wave Detection | True RMS method |
