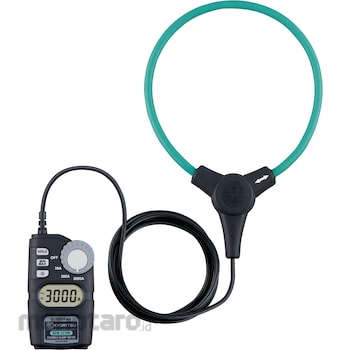

KYORITSU ELECTRICAL INSTRUMENTS Ac flexible clamp
#Grup produk P113813313
Spesifikasi
| AC Current (A) | 30/300/3000 |
|---|---|
| Accuracy | ±3%rdg±5dgt(45 to 500Hz)(measured at the center of the sensor) |
| Applicable Standard | IEC61010-1, IEC61010-2-030, CATIII1000V/CATIV600V Contamination degree 2, IEC61010-2-032, IEC61326-1 (EMC), IEC60529 IP40 |
| Automatic Power Off | About 15 minutes |
| Cable Length (m) | Approximately 1.8 (sensor integrated type) |
| Calibration Certificate | General calibration |
| Continuous Operating Time (hour) | Approximately 120 (when using LR03) |
| Crest Factor | Full scale < 1.6, half scale < 3.2, effective input peak value is √2 times each range |
| Dimensions, Width W x Height H x Depth D (mm) | 70x120x26 |
| Error | Add up to 3% to the accuracy of sensor center measurement (depending on conductor position) |
| Included Accessories | 9174 (carrying case), AAA battery LR03 x 2, instruction manual |
| Length (mm) | (Main body) 26 |
| Mass (g) | Approx. 300 (including batteries) |
| Operating Temperature/Humidity Range | 0 to 50 ° C, 80% or less (no condensation) |
| Outer Dimensions, Length L x Width W x Height H (mm) | Body: 120 x 70 x 26 |
| Overload Protection | AC5000A/10 seconds |
| Part Number | KEW2210R (with test report, calibration certificate, and traceability system diagram) |
| Power Supply | AAA batteries R03/LR03 (1.5V) x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Storage Temperature/Humidity Range | -10 to 60°C, 70% or less (no condensation) |
| Suitable Battery | AAA batteries R03/LR03 (1.5V) x 2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Adoption of flexible and lightweight flexible sensor Capable of measuring up to AC3000A (true effective value) Equipped with maximum/minimum value display function Adoption of white backlight for easy viewing in dark places Minimum resolution 0.01A
