Thin and ultra-lightweight clamp meter Maximum current AC1000A Measured conductor diameter Φ33mm Multifunctional design with AC/DC voltage and resistance range Minimum resolution 0.01A
Thin and ultra-lightweight, convenient for measurements with intricate wiring.
*Shocks such as dropping or storage at high temperatures may cause malfunction and are not covered by the warranty.
[Products with proofreading documents cannot be canceled after ordering] *Products with proofreading documents and traceability system diagrams can only be ordered online.
*Applicable documents are included only with products whose part number includes (JCSS calibration book included), (general calibration book/traceability system diagram included), or (calibration book/traceability system diagram included).

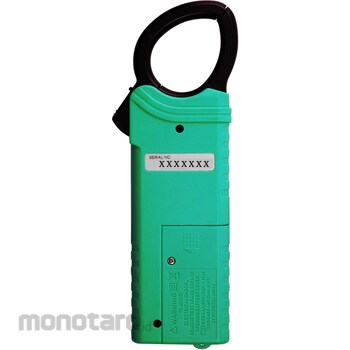

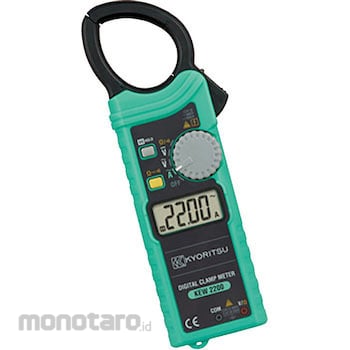

KYORITSU ELECTRICAL INSTRUMENTS AC Digital Clamp Meter
#Grup produk P113813298
Spesifikasi
| AC Current (A) | 40/400/1000 (3 range auto) ±1.4%rdg±6dgt (50/60Hz) ±1.6%rdg±6dgt (45~65Hz) |
|---|---|
| AC Voltage (V) | 4/40/400/600 (4 range auto) ±1.8%rdg±7dgt (45 to 65Hz) ±2.3%rdg±8dgt (65 to 500Hz) |
| Applicable Standard | IEC 61010-1 CAT.III 600V Pollution Degree 2 (AC A), CAT.III 300V/CAT.II 600V Pollution Degree 2 (AC/DC V), IEC 61010-031, IEC 61010-2-032, IEC 61326 (EMC) |
| Continuity | Buzzer sounds when 50 ± 30Ω or less |
| Continuous Operating Time (hour) | Approx. 350 (auto power off/approx. 10 minutes) |
| DC Voltage | 400.0mV/4.000/40.00/400.0/600V (5 range auto) ±1.0%rdg±3dgt |
| DC Voltage (V) | 400m/4/40/400/600 (5 range auto) ±1% rdg±3dgt (excluding 400m range) |
| Dimensions, Width W x Height H x Depth D (mm) | 68x190x20 |
| Included Accessories | 7107A (measurement cord), 9160 (carrying case), 2 AAA R03 batteries, instruction manual |
| Length (mm) | 20 |
| Mass (g) | Approximately 120 (including batteries) |
| Part Number | KEW2200 (with test report, calibration certificate, and traceability system diagram) |
| Power Supply | AAA batteries R03/LR03 (1.5V) x 2 |
| Resistance (Ω) | 400/4/40/400k/4/40M (6 range auto), ±2%rdg±4dgt (0 to 400kΩ), ±4%rdg±4dgt (4MΩ), ±8%rdg±4dgt (40MΩ) |
| Suitable Battery | AAA batteries R03/LR03 (1.5V) x 2 |
| Withstand Voltage | AC5320V/5 seconds (between core and outer case), AC3540V/5 seconds (between electrical circuit and outer case) |
