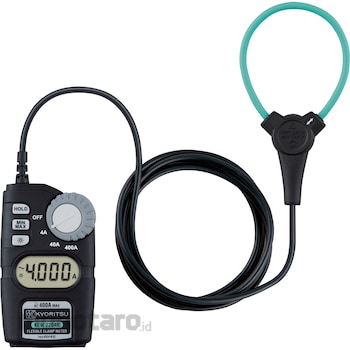

KYORITSU ELECTRICAL INSTRUMENTS AC Digital Clamp Meter
#Grup produk P113813270
Spesifikasi
| AC Current (A) | 4.000/40.00/400.0 |
|---|---|
| Accuracy | ± 3% rdg ± 5dgt + [45-500Hz] + (by sensor center measurement) |
| Applicable Standard | IEC + 61010-1, + IEC + 61010-2-032, CAT + IV + 600V/CAT + III + 1000V + pollution degree 2, IEC + 61326-1 (EMC), + IEC + 60259 + IP40, + EN50581 (RoHS) ) |
| Cable Length (m) | Approximately 1.8 (sensor integrated type) |
| Continuous Use Time | When using LR03 + about 120 hours |
| Dimensions, Width W x Height H x Depth D (mm) | 70x120x26 |
| Height (mm) | (Body) 120 |
| Included Accessories | 9174 (portable case), AAA batteries + LR03 x 2, + instruction manual |
| Length (mm) | (Main body) 26 |
| Mass (g) | Approximately 200 (including batteries) |
| Operating Temperature/Humidity Range | 0 to + 50 ° C + 80% or less (no condensation) |
| Outer Dimensions, Length L x Width W x Height H (mm) | Body: 120 x 70 x 26 |
| Part Number | KEW2204R (with test report, calibration certificate, and traceability system diagram) |
| Power Supply | AAA batteries R03/LR03 (1.5V) x 2 |
| Storage Temperature/Humidity Range | -10 to + 60 ° C + 70% or less (no condensation) |
| Suitable Battery | AAA battery R03/LR03 (1.5V) x 2 |
| Width (mm) | (Main body) 70 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Adopts a flexible and lightweight flexible sensor. Comes with a maximum/minimum value display function. Comes with a backlight for easy viewing in the dark. Safety design that complies with international safety standards IEC61010-1, IEC61010-2-032 CAT IV 600V/CAT III 1000V. Minimum resolution of 0.001. A
Feature
SpecificationError due to conductor position: Up to 2% added to the accuracy of sensor center measurement
