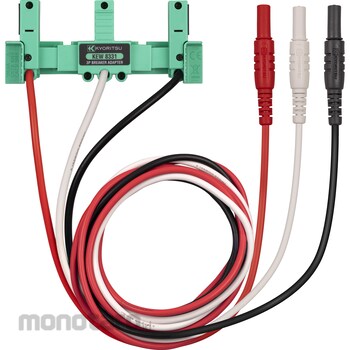

KYORITSU ELECTRICAL INSTRUMENTS 3P breaker terminal adapter
#Grup produk P113812916
Spesifikasi
| Applicable Standard | IEC 61010-031 CAT IV 300V/CAT III 600V |
|---|---|
| Cable Length (m) | 1.5 |
| Included Accessories | 8077 (tip attachments [3 pieces]), instruction manual (included with the main unit) |
| Mass (g) | About 230 |
| Operating Temperature/Humidity Range | -10 to 50°C, relative humidity 85% or less (no condensation) |
| Operating Voltage Range (V) | AC 0~600rms(50/60Hz) |
| Option | (Sold separately) 7315-BLK (banana DIA4 female-female adapter), 9096 (carrying case) |
| Outer Dimensions (mm) | 50(L) x 117.5(W) x 37(D) (excluding cord) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Storage Temperature/Humidity Range | -20 to 60°C, relative humidity 85% or less (no condensation) |
| Suitable For | Compatible breaker sizes: 30 to 250AF |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Description
Prevents alligator clips from falling off or shorting when connecting to a breaker. Firmly holds the breaker in place, making it ideal for long-term measurements with power meters. Φ4 banana plug allows use with a variety of measuring instruments. Adjustable to fit the width of the breaker, it can be connected with one touch. The structure makes it difficult to come off even during long-term recording with power meters. Φ4 banana plug can be used with a variety of measuring instruments. By replacing your existing test cord, it can be used with a variety of measuring instruments such as testers, loggers, and power meters. Tip attachment with variable length. If the tip attachment cannot reach the breaker terminal due to a dummy image bus bar, etc.,
It can be extended by approximately 8 mm when turned upside down. Compatible with measuring instruments with male connection. By using the optional banana Φ4 female-female adapter (MODEL 7315-BLK) sold separately, it can be connected even if the measuring instrument has a male connection.
*When the tip attachment is pushed in, the color inside the window changes from black to white.
It can be extended by approximately 8 mm when turned upside down. Compatible with measuring instruments with male connection. By using the optional banana Φ4 female-female adapter (MODEL 7315-BLK) sold separately, it can be connected even if the measuring instrument has a male connection.
*When the tip attachment is pushed in, the color inside the window changes from black to white.
