Zero span adjustment is standard equipment . Diaphragm material can be selected according to the application (SUS630, SUS316L, Co-Ni alloy) . Case structure IP67 compatible (cable type: IP52) . Supports a wide range up to a maximum pressure of 120MPa (Only Co-Ni alloy specifications support 120MPa) . Quick response of 1ms or less . Equipped with check terminals (terminal box type) Output check is possible without removing the electric wire
This unit is a pressure transmitter that converts the pressure into an electric signal of 4 to 20mA DC, 0 to 5V DC or 1 to 5V DC and transmits it with a detector using a semiconductor strain gauge and a built-in electronic circuit. It has improved electrical and mechanical reliability and is equipped with zero span adjustment as standard equipment.

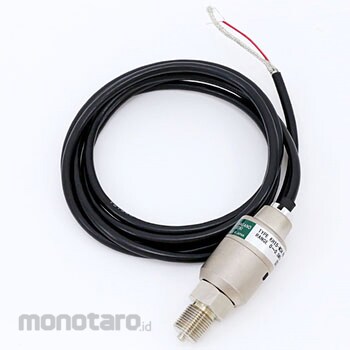

NAGANO KEIKI Pressure Transmitter Model Number: KH15
#Grup produk P113798494
Sebelum PPN:
Rp10.999.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy | ±1%F.S. |
|---|---|
| Mass (g) | About 220 |
| Material (stem) | SUS316L |
| Measurable Fluid | Gas / liquid |
| Operating Temperature Range (°C) | -20 to 70 |
| Output | 4 to 20mA DC 2-wire |
| Power Supply | 24V DC±10% |
| Standard | 2004/108 / EC, EN61326-1: 2006, EN61326-2-3: 2006, EU RoHS compliant |
| Type | Terminal box (small) JIS10a |
