Compact, lightweight, and waterproof. 16,000 recorded data points. Measured and recorded temperature data can be downloaded to a PC via optical communication using the communication port (TR-50U2) or data collector (TR-57DCi).
*The TR-55i-TC does not come with a sensor. Please prepare a miniature connector type thermocouple sensor separately. *1. Cold junction compensation accuracy is ±0.5°C (-40 to +10°C, +40 to +80°C), ±0.3°C (+10 to +40°C). *2. Waterproof performance applies when the temperature sensor and input module are connected. However, please note that the input module is not waterproof. For the TR-50U2, see 63-1464, and for the TR-57DCi, see 63-1570.

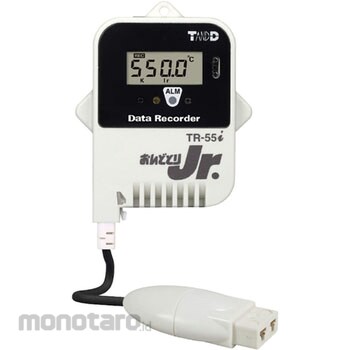

T&D Temperature Recorder Ondotori Jr.
#Grup produk P113769951
Spesifikasi
| AS ONE Part Number | 61-8493-85 |
|---|---|
| Accuracy | K, J, T: ± 0.3 °C + 0.3% of reading S: ± 1 °C + 0.3% of reading |
| Data Recorded Numbers | 16000 data x 1ch |
| Dimensions (H x W x D) (mm) | 62X47X19 |
| Included Accessories | Input module (TCM-3010), lithium battery (LS14250), strap, instruction manual (with warranty) set |
| LCD Display | Measurements full data readings status and battery life warnings, measurement range Over temperature unit and status of the sensor is not connected, infrared communication |
| Mass (g) | Approximately 55 (including batteries) |
| Mass of Main Unit (g) | About 45 |
| Measurement Channel | 1c (External sensor) |
| Operating Temperature/Humidity Range | -40 to + 80 ° C (-20 to + 60 ° C when using CR2) |
| Recording Interval | 1, 2, 5, 10, 15, 20, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 60 minutes |
| Recording Mode | Endless mode/one-time mode |
| Resolution | 0.1°C |
| Temperature Measurement Range (°C) | -199~+1700 |
| Waterproof | IP64 (waterproof) * 2 |
