It has a self-holding function and can control 2 alarm contacts with one unit.
Easy to install due to plug-in installation.
Fail save operation is possible with SELECT.SW.
(Alarm is output even in the event of an abnormality during a power failure)
Operation can be switched with one touch without changing the wiring with SELECT.SW.
The maximum separation distance from the sensor is 1km.
(Cable VCT 0.75mm 2 , 3 cores)

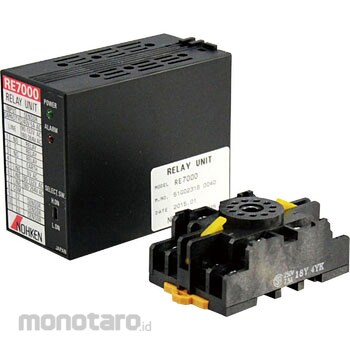

Nohken Relay unit with socket
#Grup produk P113764415
Spesifikasi
| Alarm Contact | Relay contact (1 transfer) |
|---|---|
| Dimensions (mm) | W50xH84xD109 |
| Mass (g) | 280 |
| Operating Humidity (%RH) | 85 (No condensation) |
| Operating Temperature (°C) | 0~+50 |
| Operation Indicator | Light emitting diode |
| Power Consumption | 1.5VA Max |
| Power Supply | 90~132/180~264V AC50/60Hz |
| Power for Sensor | 8V.5mA AC Max |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Storage Temperature (°C) | -20~+70 |
| Wiring length | 1km Max (between level sensor and relay unit) |
