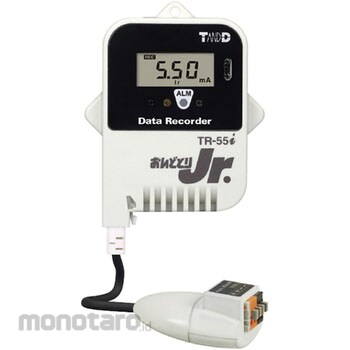

Measures and records current. The recorded data can be collected using the communication port TR-50U2 or the data collector TR-57DCi, and can be displayed in graphs and analyzed on a PC.
*Waterproof performance when the input module is connected. However, please note that the input module is not waterproof. *For data collectors, see 63-1570.
T&D Recorder
#Grup produk P113764293
Spesifikasi
| AS ONE Part Number | 61-8493-88 |
|---|---|
| Accuracy | ± 0.1mA + 0.3% of reading (module temperature: -40 to + 10 ° C), ± 0.05mA + 0.3% of reading (module temperature: +10 to + 40 ° C), ± 0.1mA + 0.3% of reading (module (Temperature: +40 to + 80 ° C) |
| Data Recorded Numbers | 16000 data x 1ch |
| Dimensions (H x W x D) (mm) | 62X47X19 |
| Included Accessories | Input module (AIM-3010), lithium battery (LS14250), strap, instruction manual (with warranty) set |
| LCD Display | Measurements full data readings status and battery life warnings, measurement range Over temperature unit and status of the sensor is not connected, infrared communication |
| Mass of Main Unit (g) | About 45 |
| Measuring Item | 4-20mA |
| Measuring Range | 0 to 20mA (operable up to 40mA) |
| Outer Dimensions (mm) | 47 x 19 x 62 (excluding protrusions) |
| Power Supply | 1 lithium battery (CR2 can be used) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Recording Interval | 1, 2, 5, 10, 15, 20, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 60 minutes |
| Recording Mode | Endless mode/one-time mode |
| Waterproof | IP64 |
