Small size that fits in a shell-shaped pocket
4000 count liquid crystal display
Power saving design to prevent forgetting to turn off the power switch
With range hold function
With auto power off function
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

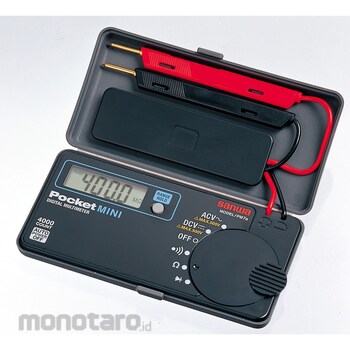

Sanwa Electric Instrument Pocket Digital Multimeter
#Grup produk P113763470
Spesifikasi
| AC Voltage (V) | 4/40/400/500 |
|---|---|
| Calibration Certificate | General calibration |
| Continuity Check | Buzzer sound at 10 to 120Ω or less Open voltage: approx. 0.4V |
| DC Voltage (V) | 400m/4/40/400/500 |
| Dimensions (H x W x D) (mm) | 115x57x18 |
| Dimensions, Width W x Height H x Depth D (mm) | 57x115x18 |
| Diode Test | Open voltage: about 1.5V |
| Display | Numerical value: 4000 |
| Feature | 4000 counts, 0.7% maximum accuracy, range hold, auto power off (approx. 15 minutes), cannot be canceled, continuity range is applied voltage approx. 0.4V low power ohms, mechanism design that prevents the lid from closing when power is ON |
| Frequency Characteristic | 40~400Hz |
| Height (mm) | 115 |
| Included Accessories | Instruction manual |
| Length (mm) | 18 |
| Mass (g) | About 85 |
| Operation Environment | 5 to 40°C, 80% RH or less (no condensation) |
| Overall Length (m) | Approx. 0.5 (test lead length) |
| Part Number | PM7a (with calibration certificate, traceability system diagram, and test report) |
| Pin Length (mm) | 15 |
| Power Supply | LR44 (alkaline battery) 1.5V x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 400/4k/40k/400k/4M/40M |
| Sample Rate (time/s) | 3 (number part) |
| Type | Digital Multimeters |
| Width (mm) | 57 |
