Ideal for highly viscous and corrosive liquids.
Resistant to highly viscous and highly corrosive liquids: The liquid to be measured only comes into contact with the detection pipe, not the device itself, so it can be used safely even with highly corrosive liquids.In addition, by enlarging the tip of the detection pipe, even highly viscous liquids can be accurately detected.
The movement of the moving parts is small, resulting in a long life. The diaphragm, which moves according to the head pressure, moves a maximum of 2 mm, so there is no need to worry about failure due to fatigue.
Stable operation: By using a high-performance microswitch, there is a certain hysteresis between the operating point and the release point, making it less likely to cause chattering due to liquid surface fluctuations and ensuring stable operation.
Explosion-proof structure/FP510 Pressure-resistant explosion-proof TIIS explosion-proof d2G4

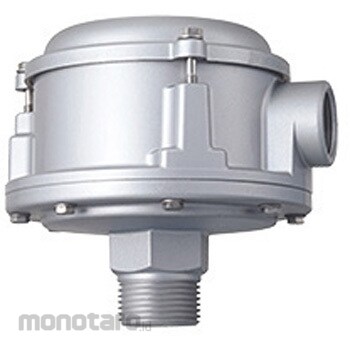

Nohken Pneumatic level sensor
#Grup produk P113763434
Spesifikasi
| Contact Capacity | 250V 5A AC/250V 0.25A DC |
|---|---|
| Mass (kg) | About 0.3 |
| Mounting Screw | G1 |
| Structure | IP20 |
