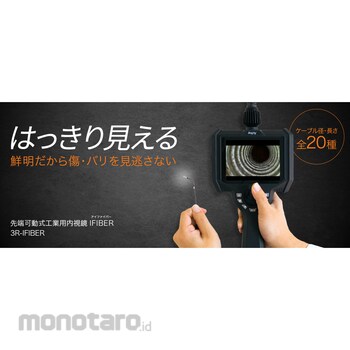

3R Solution Movable tip industrial endoscope
#Grup produk P113760394
Spesifikasi
| Battery | 18650 3.7V/2200mAh x 2 |
|---|---|
| Cable Length (m) | Camera Effective Length: (Approx.) 1.0/2.0 |
| Continuous Operating Time (hour) | (Approx.) Average 2 hours |
| Dimensions (mm) | Approx. 350 x 158 x 60 (*not including camera cable and joystick) |
| Dust/Water Protection | Insertion part: IP67 |
| Focal Length (mm) | (Approx.) DOF3-70 |
| Image Sensor | 1/18 inch |
| Interface | HDMI output (1280x720/60Hz) |
| LCD monitor | 5 inches |
| Light Source | Optical fiber x 1, Dimming: OFF + 8 steps |
| Mass (g) | About 825 (1.0m), about 840 (2.0m) |
| Operating Temperature Range (°C) | Insertion tube: -20 to 70, monitor: -10 to 50 |
| Recharging Time (hour) | (Approx.) Average 5 hours |
| Resolution | Monitor: 1024 x 768, Camera: 160,000 pixels |
| Save format | MicroSD card (up to 64GB) |
| Set Contents | Videoscope x 1, MicroSD card (for test) x 1, Card reader x 1, USB cable x 1, HDMI cable x 1, Charger x 1, Simple stand x 1, Cleaning cloth x 3 |
| Still image size | JPG:400x400 |
| Video Size | MP4:400x400(30fps) |
| Viewing Angle | (Approx.) FOV100° |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

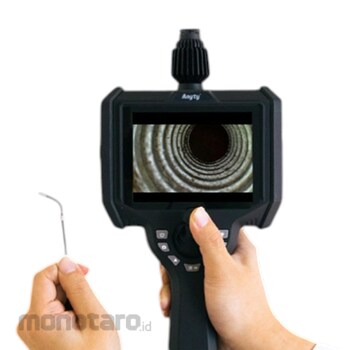

An industrial endoscope with a movable tip that combines clear image quality and excellent operability. High performance specifications and cost performance are realized. Diameter 1.8mm/2.4mm/2.8mm/3.9mm/6.0mm, effective length up to 7m. Clear image quality reduces work load A large screen with clear images of up to 920,000 pixels that can detect even the smallest scratches. Images with less noise lead to improved inspection accuracy and less burden on the observer. *The camera resolution varies depending on the tip diameter. Easy-to-operate, fatigue-free joystick Uses a light-touch joystick that allows you to intuitively move the camera to where you want to see. It is less tiring and enables free operation. * The range of motion varies depending on the tip diameter and effective length. Supports HDMI output for viewing on a large screen Supports HDMI output. Inspection images can be displayed in real time simply by connecting the supplied cable. In addition, it is possible to share with multiple people and check with clients on a large screen, which is useful for efficient communication.
