Laser marking device for standardization. High-intensity rectangular / horizontal laser. High-brightness laser that is easy to see even in bright places. Visible light semiconductor laser Wavelength 635nm Laser safety standard Class 1M.
*Cancellation is not possible for orders with an inspection report. *For products with an inspection report, the inspection report will be self-inspected by the manufacturer. If you register the warranty, free repair and shipping for one year (*If the customer is at fault such as dropping, only the cost of parts will be borne by the customer.), and one year theft and fire compensation (*Insurance fees are not included). Manufacturer's warranty registration is required.Even if it is stolen or caught in a fire, it can be repurchased with a 5,000 yen exemption fee.

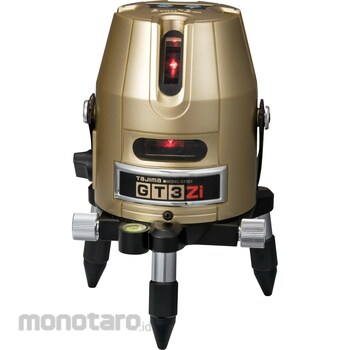

Tajima (TJM DESIGN) Laser sumi appearance device
#Grup produk P113758672
Sebelum PPN:
Rp10.999.900 - Rp15.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy (mm/m) | Irradiation line: ± 0.81mm/10m Reach point distance: ± 1mm/7.5m |
|---|---|
| Angle Adjustment Range | 360° |
| Automatic Correction Range | ±2° |
| Continuous Operating Time | Mode 1: Approx. 14 hours/Mode 2: Approx. 9 hours |
| Dimensions, H x W (mm) | 168x112 |
| Laser Safety Standards | Class 1M |
| Light Source | Visible semiconductor laser |
| Line Width (mm) | About 2.5/7.5m |
| Operating Temperature Range (°C) | -5~40 |
| Optical Output (mW) | 2.5 or less |
| Outer Dimensions (mm) | Vertical 168 x horizontal 112 x depth 112 |
| Projection Mode | Square/horizontal |
| Right angle accuracy | 90°±2mm/7.5m |
| Type of Braking | Gimbal method |
| Vertical point accuracy (mm) | ±1.0/3m |
| Warning Alarm | Battery life: Laser light blinks (Laser blinks for 30 seconds, Laser turns off, Only Switch LED blinks) |
| Wavelength (nm) | Line 635/point 650 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationDustproof and waterproof design
