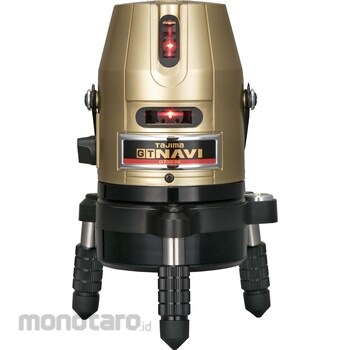

Tajima (TJM DESIGN) Laser marking device GT5Z-NI

Sebelum PPN:
Rp26.999.900 - Rp28.999.900
Spesifikasi
Accuracy(Irradiation line) Within ± 0.81mm at 10m, (Destination distance) Within ± 1mm at 7.5m
Automatic Correction Range±2°
Continuous Operating Time(Ink dispenser main unit) Approx. 9 hours (power saving)/Approximately 4.5 hours (high brightness), (Navi/Remote control mechanism) More than 600 times
Dust/Water ProtectionDustproof and waterproof design
Irradiation LineVertical line (front, back, right, left), horizontal line, large rectangular line, point (vertical, bottom)
Laser Safety StandardsClass 1M
Light SourceVisible semiconductor laser
Line Width (mm)Approximately 2.5 at 7.5m
Luminance(Output) 250μW
Mass of Main Unit (g)1300
Operating Temperature Range (°C)-5~40
Optical Output (mW)2.5 or less
Outer Dimensions (mm)Vertical 190 x horizontal 130 x depth 127
Power Supply(Ink cartridge body) AA alkaline batteries x 3, (Navigator/Remote control mechanism) AA alkaline batteries x 2, (Receiver) AAA alkaline batteries x 4
Right angle accuracy90°±(2mm/7.5m)
Type of BrakingMagnet damper system
Vertical point accuracy (mm)± 1 at 3m
Warning AlarmBattery life/(Ink detector body) Laser light flashes, (Navi/Remote control mechanism) Power switch LED flashes
Wavelength (nm)Line 635/point 650

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
It is a laser with NAVI function that can automatically match the ground ink.
With NAVI function, remote control rotation function, turn-off / line / mode switching function High-brightness laser that is easy to see even in bright places With 360 ° rotation fine adjustment function that enables precise ground-ink matching You can attach a tripod directly to the main unit.
Laser marking device for standardization
*According to the accuracy confirmation method, be sure to check the accuracy before and after use. Using it in a broken state may cause erroneous measurements. *Cancellation is not possible for orders with an inspection report. *For products with an inspection report, the inspection report will be self-inspected by the manufacturer. If you register the warranty, free repair and shipping for one year (*If the customer is at fault such as dropping, only the cost of parts will be borne by the customer.), and one year theft and fire compensation (*Insurance fees are not included). Manufacturer's warranty registration is required.Even if it is stolen or caught in a fire, it can be repurchased with a 5,000 yen exemption fee.
Feature
Specification
1 year theft/fire compensation
