It is a laser equipped with NAVI function that is strong against shaking with a sensor function and can automatically match the ground ink.
With NAVI function, remote control rotation function, turn-off / line / mode switching function High-brightness laser that is easy to see even in bright places With 360 ° rotation fine adjustment function that enables precise ground-ink matching You can attach a tripod directly to the main unit.
Laser marking device for standardization
*According to the accuracy confirmation method, be sure to check the accuracy before and after use. Using it in a broken state may cause erroneous measurements. *Cancellation is not possible for orders with an inspection report. *For products with an inspection report, the inspection report will be self-inspected by the manufacturer. If you register the warranty, free repair and shipping for one year (*If the customer is at fault such as dropping, only the cost of parts will be borne by the customer.), and one year theft and fire compensation (*Insurance fees are not included). Manufacturer's warranty registration is required.Even if it is stolen or caught in a fire, it can be repurchased with a 5,000 yen exemption fee.

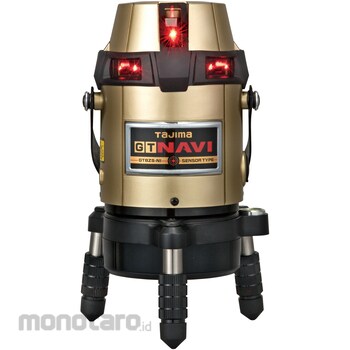

Tajima (TJM DESIGN) Laser marking device + GT8ZS-NI
#Grup produk P113757257
Sebelum PPN:
Rp36.999.900 - Rp38.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy (mm) | (Irradiation line) Within ± 0.81mm at 10m, (Destination distance) Within ± 1mm at 7.5m |
|---|---|
| Automatic Correction Range | ±2° |
| Continuous Operating Time | (Ink dispenser body) Approximately 6.5 hours (in receiver mode)/Approximately 3 hours (in normal mode), (Navigation/remote control mechanism) 600 times or more |
| Dust/Water Protection | Dustproof and waterproof design |
| Irradiation Line | Vertical line (front, back, right, left), horizontal all around, large rectangular line, point (vertical, bottom) |
| Laser Safety Standards | Class 1M |
| Light Source | Visible semiconductor laser |
| Line Width (mm) | Approximately 2.5 at 7.5m |
| Mass of Main Unit (g) | 1450 |
| Operating Temperature Range (°C) | -5~40 |
| Optical Output (mW) | 2.5 or less |
| Outer Dimensions (mm) | Vertical 215 x horizontal 130 x depth 130 |
| Power Supply | (Main body of ink dispenser) AA alkaline batteries x 4/AC adapter (sold separately), (Navigation/remote control mechanism) AA alkaline batteries x 2, (Receiver) AAA alkaline batteries x 4 |
| Right angle accuracy | 90°±(2mm/7.5m) |
| Type of Braking | Electronic 2-axis sensor method |
| Vertical point accuracy (mm) | ± 1 at 3m |
| Warning Alarm | Battery life/(Ink detector body) Laser light flashes, (Navi/Remote control mechanism) Power switch LED flashes |
| Wavelength (nm) | (Line) 635, (Point) 650 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification1 year theft/fire compensation
