Data transfer via Bluetooth communication is possible Equipped with a bandpass filter function that extracts only the frequency band centered on 50 Hz / 60 Hz of ACA and ACmA. Both leakage current and load current can be measured.
MAX / MIN hold function Auto power off data hold function Safety standard IEC 61010-1 CAT.III 600 V
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders on the web. * Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

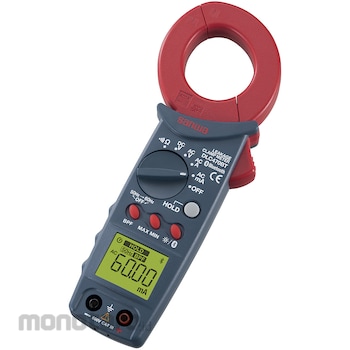

Sanwa Electric Instrument IO leak clamp meter
#Grup produk P113756416
Spesifikasi
| AC Current (A) | 60/400 |
|---|---|
| AC Voltage (ACV) | 600 |
| AC Voltage (V) | 600 |
| Battery Life (hour) | Bluetooth function OFF: Approx. 42, Bluetooth function ON: Approx. 40 (backlight off) |
| Calibration Certificate | General calibration |
| Conductor Size (mm) | 10x40 |
| Continuity | Sounds at about 30Ω or less, open circuit voltage 0.9V |
| Continuity Check | Sounds at approximately 30 ohms or less, open voltage 0.9V |
| DC Voltage (DCV) | 600 |
| DC Voltage (V) | 600 |
| Digit Number of Display | 6000(V/A) 9999(Ω) |
| Dimensions (H x W x D) (mm) | 206x83x38 |
| Frequency Characteristic | 40~400Hz |
| Interface | IOS Ver. 11 or later/Windows 10 or later |
| Leakage Current (mA) | AC:60/600 |
| Mass (g) | About 320 |
| Part Number | DLC470BT (with calibration certificate, test report, and traceability system diagram) |
| Power Supply | LR03 (AAA alkaline) x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 999.9 |
| Safety Standard | IEC61010 CAT.III600V |
| Sample Rate (time/s) | 2 |
| Size | 83x206x38 |
| Type | Clamp meter |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationCommunication: Bluetooth(R) 5.1 Measurement data transfer interval: Approximately once per second
