Compact stick-shaped light receiving part (Φ9mm) separated from the main unit Can measure the illuminance of small areas and small areas Small size that can be stored in a breast pocket 4039 counts, bar graph display Close to the relative luminosity of CIE (International Commission on Illumination) Uses a silicon photodiode with spectral sensitivity Measurement range: 0.1 lx to 403.9 klx Data hold Auto power save function (approximately 15 minutes)
* Only orders can be placed online. * Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders on the web.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

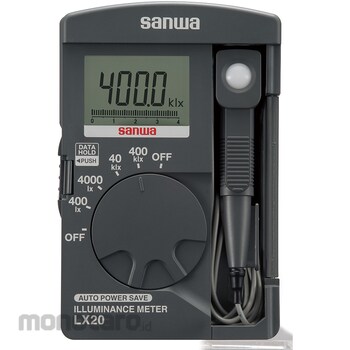

Sanwa Electric Instrument Illuminometer
#Grup produk P113755392
Spesifikasi
| Cable Length (m) | Extension 0.9 |
|---|---|
| Calibration Certificate | General calibration |
| Dimensions, Width W x Height H x Depth D (mm) | 76x84x10 |
| Included Accessories | Instruction manual |
| Light Receiving Element | Si photodiode approximating relative luminous efficiency |
| Mass (g) | About 120 |
| Measuring Range (Lux) | 0.1~403.9k |
| Operation Environment | Temperature 0 ° C-40 ° C Humidity 80% RH or less No condensation |
| Part Number | LX20 (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | LR44 (alkaline battery) 1.5V x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Safety Standard | IEC61326 |
| Type | Illuminometer |
