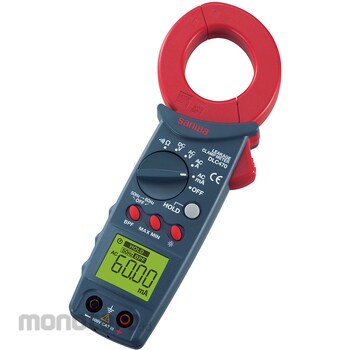

Sanwa Electric Instrument I0 leak clamp meter
#Grup produk P113755277
Spesifikasi
| AC Current (A) | AC60/400 |
|---|---|
| AC Voltage (V) | 600 |
| Battery Life | About 42 hours (backlight off) |
| Battery Life (hour) | Approx. 42 (backlight off) |
| Conductor Size (mm) | 10x40 |
| Continuity Check | Buzzer sound at about 30Ω or less Open voltage: about 0.9V |
| DC Current (A) | DC600 |
| Digit Number of Display | 6000(V/A) 9999(Ω) |
| Dimensions (H x W x D) (mm) | 206x83x38 |
| Frequency Characteristic | 40~400Hz |
| Included Accessories | Instruction manual, LR03 (AAA alkaline battery) 1.5V x 2, Carrying case (C-DCM660), Test lead (TL-21a) |
| Leakage Current (mA) | AC:60/600 |
| Mass (g) | Approx. 320 (including battery) |
| Part Number | DLC470 (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | LR03 (AAA alkaline) x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 999.9 |
| Sample Rate (time/s) | 2 |
| Type | Clamp meter |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Equipped with a band-pass filter function Leak clamp meter Equipped with a band-pass filter function that extracts the current value (ACA, ACmA) in the frequency band centered on 50Hz/60Hz Both leakage current and load current can be measured Equipped with a backlight to measure values even in dark places Easy-to-read MAX/MIN hold function, data hold function/auto power off function Safety standard IEC61010-1 CAT.III 600 V
