Multi-GNSS support improves reception and observation speed and accuracy
Operated with the dedicated app "Tajima GNSS" that allows even first-time users to easily set on-site reference points. *AndroidTM smartphone required. Smooth measurement work. Tilt correction function included. Compact, lightweight, and durable body. IP67.
Carefully selected functions: Create control points on-site, observe the current situation, drive stakes, and input measurement results into CAD drawings
RTK pole and bipod included as standard
GNSS for surveying
*In addition to the device itself, you will need the following to use Tajima GNSS: 1. An Android smartphone, 2. A contract with a correction data distribution service. *Please read the instruction manual carefully before use. Product specifications are subject to change without notice. Thank you for your understanding.

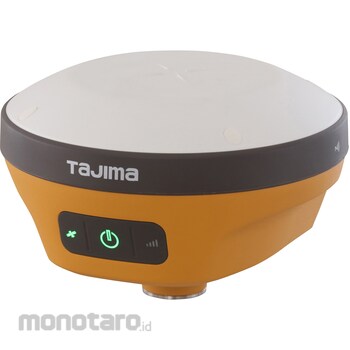

Tajima (TJM DESIGN) GNSS-V20T (with bipod and RTK pole)
#Grup produk P113753358
Spesifikasi
| Accuracy | Real-time kinematic (RTK) positioning: horizontal 8mm+1ppm RMS/vertical 15mm+1ppm RMS, static positioning: horizontal 2.5mm+0.5ppm RMS/vertical 5mm+0.5ppm RMS |
|---|---|
| Continuous Operating Time (hour) | RTK positioning: 12, static positioning: 15 |
| Dust/Water Protection | IP67 |
| Interface | Wi-Fi(2.4GHz 802.11a/b/g/h)),Bluetooth(Ver4.2/2.1+EDR, 2.4GHz)),USB(Type-C 2.0) |
| Mass (g) | 800 (including rechargeable battery) |
| Number of Channels | 800ch/GPS.QZSS.Galileo.GLONASS.BeiDou |
| Operating Temperature (°C) | -30~+70 |
| Outer Dimensions (mm) | DIA132x67 |
| Power Consumption (W) | 3.2 |
| Power Supply | Built-in lithium-ion rechargeable battery 3.7V, 6300mAh, powered by USB port (5V) |
| Shock Resistance | 1.2m natural fall onto concrete, overturn clear with 2m pole |
| Storage | 8GB internal storage |
| Storage Temperature (°C) | -40~+80 |
