Dual channel color oscilloscope
4000 count true RMS DMM function
Equipped with USB communication function
* We do not deliver to private homes (detached houses / apartments).

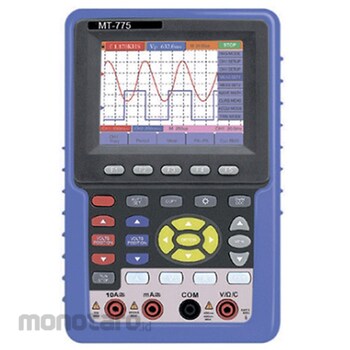

Mother Tool Full-color handheld dual-effect oscilloscope + 4000 count DMM with calibration certificate, MT series
#Grup produk P113747612
Spesifikasi
| AS ONE Part Number | 64-3729-26 |
|---|---|
| Calibration Certificate | General calibration |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationAttached document contents: Calibration certificate, transcript, traceability Calibration points: Vertical axis accuracy: C1 and C2 (10P each), frequency characteristics C1 and C2 (1P each), DC voltage (10P), AC voltage (4P) ), AC/DC current (3P), resistance (6P) *LCD specifications: 3.8 inches, color LCD *Number of input channels: 2 channels *Frequency band: 60MHz *Sampling: Max. 250MS/S *Voltage axis range: 5mV/div ~5V/div*Time axis range: 5ns/div to 5s/div*Input impedance: 1MΩ*Trigger: Edge (normal, single shot, auto), video*Maximum record length: 6000 points each*Digital tester function*DC Voltage: 400mV to 400V*AC voltage: 4V to 400V*DC current: 40mA to 10A*AC current: 40mA to 10A*Capacitance: 51.2nF to 100μF*Resistance: 400Ω to 40MΩ*Power supply used: AC adapter
