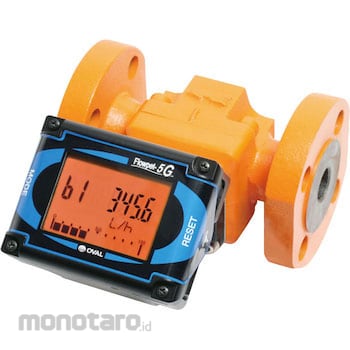

An oval flowmeter whose main purpose is to measure fuel oil. This machine, which has a well-established high accuracy and durability, plus ease of use and economy as a dedicated machine, is ideal as a flow meter for heat management. The electronic counter can select and monitor the integrated value and instantaneous flow rate value with the mode selector switch using the newly designed LCD display. In addition, the angle can be changed between 90 ° upward and 75 ° downward for easy viewing. The electronic counter is powered by the built-in battery (lifespan of about 8 years), so no external power supply is required. The display function has been improved compared to the conventional EG counter. (The height of the LCD has been increased from 10 mm to 14 mm, and an indicator that intuitively shows the instantaneous flow rate is installed.)
For oil
* Please install so that the oil always flows in full pipe.
Oval Flowpet for Oil 5G
#Grup produk P113747153
Sebelum PPN:
Rp14.999.900 - Rp24.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature (°C) | -10 to +60 (no condensation) |
|---|---|
| Detection Method | Detection of alternating magnetic field by magnetic sensor, response frequency Max.200Hz |
| Display | [Switch by MODE switch] Cumulative settlement display (8 digits), instantaneous flow rate display L/h (mode: b1)/L/min (mode: b2), reset integration display (zero start/zero reset possible mode: C (7 digit)) |
| Display Accuracy | Integration: ± 1 count, Instantaneous: Within ± 1% of full scale |
| Display Function | Battery voltage drop alarm display (battery mark blinks when battery voltage is 3.0V or less), LCD 7 segments/character height 14mm/background color (orange), flow indicator (10 divisions) display |
| Flange | JIS 10K RF,ASME 150 RF |
| Installation Location | Installation under eaves |
| Maximum Operating Pressure (MPa) | 1.18 |
| Operating Temperature Range (°C) | Fluid temperature: 0 to 120 |
| Power Supply | Built-in battery (life about 8 years) |
| Protection Class | IP65 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Suitable fluid | Kerosene, light oil, heavy oil (cannot be used for gasoline) |
