In electric vehicles (EVs) and hybrid electric vehicles (HEVs), high-voltage equipment may be damaged in a collision, causing local leakage or leakage of the entire body.
This device is a digital voltage detection checker that can easily check for leakage during rescue activities.
Control system constant voltage and dynamometer high voltage can be measured.
Easy measurement of voltage values for RV / HV / PHV vehicles

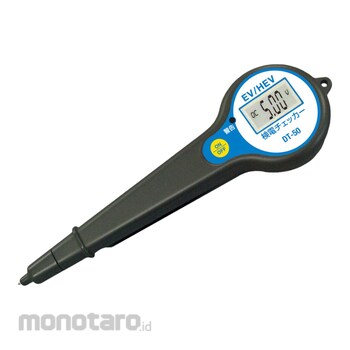

Mother Tool Electricity checker for HEV/EV
#Grup produk P113746534
Spesifikasi
| Dimensions (mm) | (Test pin) DIA2 x 11.5 |
|---|---|
| Dimensions, Width W x Height H x Depth D (mm) | 48x165x22.6 |
| Display | 3-digit LCD display |
| Function | (Self-test) Battery voltage/Test lead disconnection/Buzzer sound check |
| Height (mm) | 165 |
| Included Accessories | Dedicated soft case, battery (CR-2025 x 1), instruction manual |
| Insulation Resistance (MΩ) | (Between detection unit and grounding unit) 0.4/500V |
| Isolation Voltage | (Between detector and ground) 10000 VAC/1 minute |
| Length (mm) | 22.6 |
| Mass (g) | Approximately 40 (including batteries) |
| Operating Temperature Range (°C) | 0~40 |
| Operating Voltage | 6V±1V |
| Operating Voltage Range (V) | DC0~600 |
| Power Supply | CR-2025x1 |
| Width (mm) | 48 |
