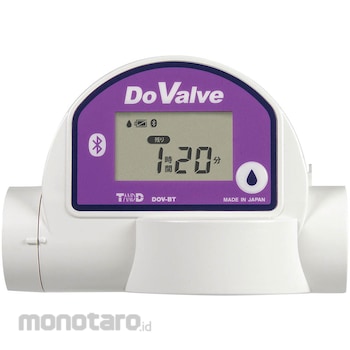

T&D Do Valve Bluetooth/Wireless LAN Compatible Temperature Sensor Set
#Grup produk P113746039
Spesifikasi
| AS ONE Part Number | 62-2978-10 |
|---|---|
| Battery Life | About 10 years a day for about 1 year, 100 days a day for about 2 months (when wireless LAN function is OFF) |
| Communication Method | Bluetooth 4.1 (Bluetooth low energy), wireless LAN IEEE 802.11b/g/n |
| Dimensions (H x W x D) (mm) | Valve: 70 x 106 x 75, control unit: 53 x 120 x 85 |
| Included Accessories | Lithium battery (CR123A), instruction manual (with warranty) set, temperature sensor (TSB-1351/temperature sensor set only) |
| LCD Display | Valve status, next scheduled valve opening, remaining valve opening time, battery level, etc. |
| Mass (g) | Valve part approx. 175 g Control part approx. 150 g (not including batteries) |
| Operating Environment | 0 to 50 ° C (non-freezing environment) |
| Power Supply | Lithium battery |
| Sensor | TSB-1351 |
| Water Pressure (MPa) | 0.1~0.7(1~7kgf/cm²) |
| Waterproof | Drip-proof specification |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This set includes the DOV-25BT Timer Valve and a dedicated temperature sensor, allowing you to set valve opening and closing times using your smartphone. Equipped with Bluetooth and wireless LAN functionality, it allows you to schedule and check the history via the internet. In addition to setting the day of the week, time, and duration, the timer can also be set to open and close the valve at specified intervals, enabling complex watering schedules. By connecting the included temperature sensor (TSB-1351), you can add temperature detection to the timer settings. This allows you to water by opening and closing the valve according to temperature conditions at specified times. [Temperature Control Condition Settings] (1) The valve opens when Measurement 1 (sensor tip) is above or below the set temperature on the set date and time. (2) The valve opens when the temperature difference between Measurement 1 (sensor tip) and Measurement 2 (module) is above or below the set value on the set date and time.
