Easy-to-hold design for stable measurement.
The maximum non-contact measurement distance is 50 cm.
Contact measurement is possible using the optional attachment (ENC-3).
MAX / MIN display function.
Fixed measurement is possible using a commercially available camera tripod.
Rotational speed and peripheral speed measurement of rotating body.
* Attachment (ENC-3) (sold separately) is required for contact measurement.
[Products with a calibration certificate cannot be canceled after ordering] * Products with a calibration certificate and traceability system diagram can only be ordered online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

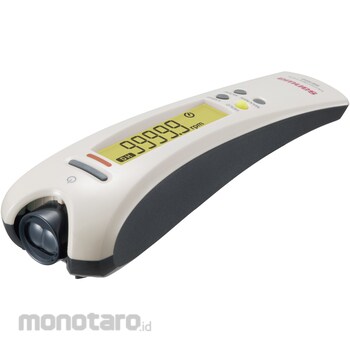

Sanwa Electric Instrument Digital tachometer
#Grup produk P113745492
Spesifikasi
| Calibration Certificate | General calibration |
|---|---|
| Dimensions, Width W x Height H x Depth D (mm) | 60x210x50 |
| Included Accessories | Reflective mark sticker (50 sheets), carrying case: C-SE300, instruction manual |
| Mass (g) | About 218 |
| Operation Environment | 5 °C ~ 40 °C 80% RH or less (no condensation) |
| Part Number | SE300 (with calibration certificate, traceability system diagram, and test report) |
| Peripheral Speed | Optional ENC-3 required m/min: 3.0-1999.0 m/s: 0.05-33.00 |
| Power Supply | R6P (AA) x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rotational speed | Rpm:30.0~99999 rps:0.50~1600.0 |
| Type | Digital tachometer |
