Up to 500,000 counts can be displayed (DCV)
True effective value measurable (AC only)
Dual display of voltage and frequency etc. is possible on the display unit. Minimum resolution is 0.01 mV (ACV / DCV only)
Equipped with capture function and MAX / MIN recording function The LCD unit is equipped with a backlight. Data can be imported to a personal computer using the separately sold dedicated software and optical link USB cable.
* Be sure to select "PC LINK7" for the PC connection software and "KB-USB7" for the USB connection cable.
[Products with a calibration certificate cannot be canceled after ordering] * Products with a calibration certificate and traceability system diagram can only be ordered online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

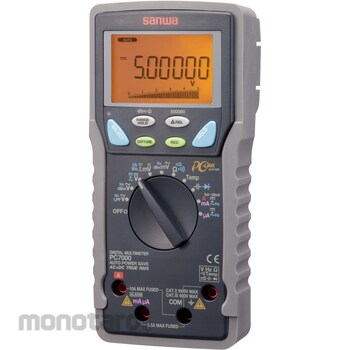

Sanwa Electric Instrument Digital Multimeters with PC Interface
#Grup produk P113745137
Spesifikasi
| AC Current (A) | 500μ/5000μ/50m/500m/5/10 |
|---|---|
| AC Voltage (V) | 500m/5/50/500/1000 |
| Battery Life (hour) | Approximately 100 continuous DCV (alkaline batteries) |
| Built-in Fuse | New model: F1412 11A/1000V/IR20kA DIA10x38mm ceramic tube, F1211 0.4A/1000V/IR30kA DIA6.3x32mm ceramic tube. Old model: F1199 12.5A/500V/IR20kA DIA6.3x32mm ceramic tube, F1198 0.63A/500V/IR200kA DIA6.3x32mm ceramic tube. |
| Capacitor Capacitance (F) | 50n/500n/5μ/50μ/500μ/5m/25m |
| Continuity Check | Buzzer sound at 20-200Ω or less Open voltage less than about 3V |
| DC Current (A) | 500μ/5000μ/50m/500m/5/10 |
| DC Voltage (V) | 500m/5/50//500/1000 |
| Dimensions (H x W x D) (mm) | 184x86x52 |
| Dimensions, Width W x Height H x Depth D (mm) | 86x184x52 |
| Diode Test | Open circuit voltage: less than 3V |
| Display | Numerical section 50000 & 500000/Bar graph section 41 segments |
| Duty Ratio | 0.1~99.99% |
| Frequency (Hz) | 10Hz ~ 200k Logic frequency: 5Hz ~ 2M |
| Frequency Characteristic | V: 45Hz to 20kHz (500V or less) A: 40Hz to 1kHz |
| Height (mm) | 184 |
| Included Accessories | Test lead (TL-23a: total length approx. 1.1 m/pin tip 18 mm), K-type thermocouple temperature sensor (K-250PC: total length 1 m), holster (H-700), instruction manual |
| Length (mm) | 52 |
| Mass (g) | 430 (including holster) |
| Operation Environment | 5 to 40°C, humidity as follows, no condensation, 80%RH (max) at 5 to 31°C, linear decrease from 80%RH to 50%RH at 31°C to 40°C |
| Part Number | PC7000 (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | 6FLF22/6LR22 (9V alkaline battery) x 1 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 500/5k/50k/500k/5M/50M |
| Safety Standard | IEC61010 CAT.III600V/CAT.II1000V |
| Sample Rate (time/s) | Numerical part: 5 (50,000 counts), 1.25 (500,000 counts) Bar graph part: 60 |
| Temperature (°C) | -50~1000 |
| Type | Digital Multimeters |
| Width (mm) | 86 |
