The liquid crystal display can display dual display such as voltage and frequency.
Approximately 80,000 data logging is possible on the main unit.
Maximum accuracy 0.06%, true Root Measure (AC).
Data can be imported to a personal computer using the separately sold dedicated software and optical link USB cable.
* Be sure to select "PC LINK7" for the separately sold PC connection software and "KB-USB7" for the USB connection cable. *Products with proofreading documents cannot be canceled after ordering. *Products with proofreading documents and traceability system diagrams can only be ordered online.
*Applicable documents are attached only to products that include (with JCSS calibration document), (with general calibration document and traceability system diagram), and (with calibration document and traceability system diagram) in the product number.

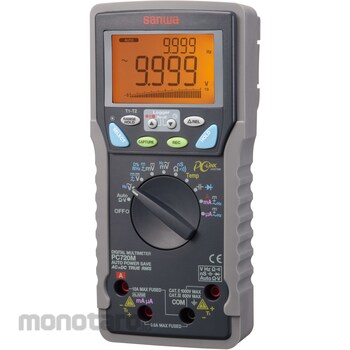

Sanwa Electric Instrument Digital Multimeters
#Grup produk P113745076
Spesifikasi
| AC Current (A) | 600μ/6000μ/60m/600m/6/10 |
|---|---|
| AC Voltage (V) | 60m/600m/9.999/99.99/999.9 |
| Built-in Fuse | F1412 (11A/1000V DIA10 x 38mm ceramic tube) x 1, F1211 (0.4A/1000V DIA6.3 x 32mm ceramic tube) x 1 |
| DC Current (A) | 600μ/6000μ/60m/600m/6/10 |
| DC Voltage (V) | 60m/600m/9.999/99.99/999.9 |
| Dimensions, Width W x Height H x Depth D (mm) | 86x184x52 |
| Diode Test | Open circuit voltage: less than 3.5V |
| Duty Ratio | 0%~100% |
| Frequency (Hz) | 15Hz~50k |
| Height (mm) | 184 |
| Included Accessories | Test lead (TL-23a: total length approx. 1.1 m/pin tip 18 mm), K-type thermocouple temperature sensor (K-250PC: total length approx. 1 m), Holsta (H-700), instruction manual |
| Length (mm) | 52 |
| Mass (g) | About 430 |
| Operation Environment | 5 °C ~ 40 °C Humidity is as follows, and there should be no condensation. It decreases linearly from 80% RH (maximum) at 5 ° C to 31 ° C and from 80% RH to 50% RH at 31 ° C to 40 ° C. |
| Part Number | PC720M (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | 6LF22/6LR61 (9V alkaline battery) x 1 |
| Resistance (Ω) | 600/6k/60k/600k/6M/60M |
| Temperature (°C) | -50~1000 |
| Type | Digital Multimeters |
| Width (mm) | 86 |
