Dual display of voltage and frequency etc. is possible
9999 count display (ACV / DCV / Hz only)
Minimum resolution is 0.01 mV (ACV / DCV only)
Data can be imported to a personal computer using the separately sold dedicated software and optical link USB cable.
R & D and equipment maintenance
* Be sure to select "PC LINK7" for the PC connection software and "KB-USB7" for the USB connection cable.
[Products with a calibration certificate cannot be canceled after ordering] * Products with a calibration certificate and traceability system diagram can only be ordered online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

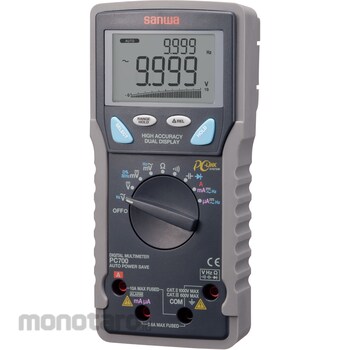

Sanwa Electric Instrument Digital Multimeters
#Grup produk P113745030
Spesifikasi
| AC Current (A) | 600μ/6000μ/60m/600m/6/10 |
|---|---|
| AC Voltage (V) | 60m/600m/9.999/99.99/999.9 |
| Battery Life (hour) | DCV continuous approx. 60 (manganese battery) |
| DC Current (A) | 600μ/6000μ/60m/600m/6/10 |
| DC Voltage (V) | 60m/600m/9.999/99.99/999.9 |
| Dimensions (H x W x D) (mm) | 184x86x52 |
| Dimensions, Width W x Height H x Depth D (mm) | 86x184x52 |
| Display | Numerical section 9999&6000 Bar graph section 41 segments |
| Frequency (Hz) | 15 to 50k, logic frequency: 5 to 1M |
| Frequency Characteristic | V: 40Hz to 20kHz (99.99V or less) A: 40Hz to 1kHz |
| Height (mm) | 184 |
| Included Accessories | Test lead (TL-23a: total length approx. 1.1 m/pin tip 18 mm), holster (H-700), instruction manual |
| Length (mm) | 52 |
| Mass (g) | 430 (including holster) |
| Part Number | PC700 (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | 6F22 (9V type manganese battery) x 1 |
| Resistance (Ω) | 600/6k/60k/600k/6M/60M |
| Sample Rate (time/s) | 5 (numerical value), 60 (bar graph) |
| Type | Digital Multimeters |
| Width (mm) | 86 |
