Maximum accuracy 0.5% (DCV) - AC adapter (sold separately) can be connected - Data can be imported to a computer with USB cable / RS232C cable and software (sold separately) - Protective holster included
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

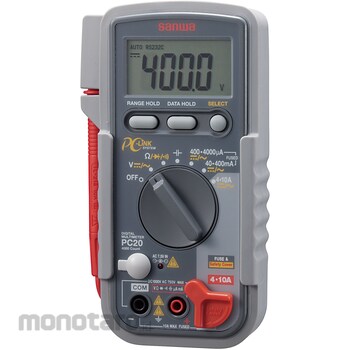

Sanwa Electric Instrument Digital Multimeters
#Grup produk P113745012
Spesifikasi
| AC Current (A) | 400μ/4000μ/40m/400m/4/10 |
|---|---|
| AC Voltage (V) | 4/40/400/750 |
| Built-in Fuse | F1176 (0.5A/250V DIA5 x 20mm ceramic tube) x 1, F1197 (12.5A/250V DIA6.3 x 32mm glass tube) x 1 |
| Capacitor Capacitance (F) | 50n/500n/5μ/50μ/100μ |
| Continuity Check | Buzzer sound in the range of 10 to 120Ω or less Open voltage: Approximately 0.4V |
| DC Current (A) | 400μ/4000μ/40m/400m/4/10 |
| DC Voltage (V) | 400m/4/40/400/1000 |
| Dimensions, Width W x Height H x Depth D (mm) | 90x167x48 |
| Diode Test | Open circuit voltage: 0.4V |
| Height (mm) | 167 |
| Included Accessories | Test lead (TL-21a: total length about 1m/pin tip 18mm), holster (H-70), instruction manual |
| Length (mm) | 90 |
| Mass (g) | About 330 |
| Operation Environment | Humidity at 5-40 ° C is as follows, no condensation |
| Part Number | PC20 (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | R6P (AA) 1.5Vx2 |
| Resistance (Ω) | 400/4k/40k/400k/4M/40M |
| Type | Digital Multimeters |
| Width (mm) | 90 |
