Supports true-square current / Temperature measurement (K-type thermocouple included) / Can measure up to DC AC 15A
R & D / equipment maintenance
If the delivery destination is a private house (detached house / apartment house), the shop name is required. Please note that delivery may not be possible if there is no store name. * Depending on the delivery location, the delivery date may be postponed and additional shipping charges may be incurred. * The driver will not assist in unloading. * Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders on the web.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

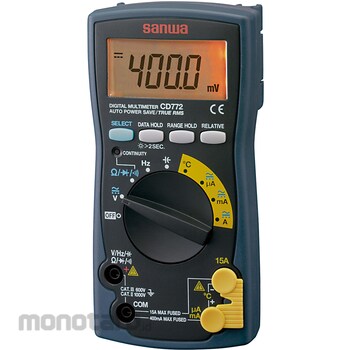

Sanwa Electric Instrument Digital Multimeters
#Grup produk P113744998
Spesifikasi
| AC Current (A) | 400μ/4000μ/40m/400m/4/15 |
|---|---|
| AC Voltage (V) | 4/40/400/1000 |
| Battery Life (hour) | Approximately 150 continuous times at DCV (manganese battery) |
| Built-in Fuse | F1200 0.5A/1000V/IR30kA DIA6.35x32mm Ceramic tube, F1203 16A/1000V/IR30kA DIA10x38mm Ceramic tube |
| Calibration Certificate | General calibration |
| Capacitor Capacitance (F) | 50n/500n/5μ/50μ/100μ |
| Continuity Check | Buzzer sounds and LED lights up at 0 to 85Ω (±45Ω) Open voltage: approx. 0.4V |
| DC Current (A) | 400μ/4000μ/40m/400m/4/15 |
| DC Voltage (V) | 400m/4/40/400/1000 |
| Dimensions (H x W x D) (mm) | 166x82x44 |
| Dimensions, Width W x Height H x Depth D (mm) | 82x166x44 |
| Diode Test | Open voltage: about 1.5V |
| Display | Numerical value: 4000 |
| Frequency (Hz) | 5/50/500/5k/50k/100k |
| Frequency Characteristic | 45 to 500Hz (4V range), 45 to 1kHz (40V range or higher, ACA) |
| Height (mm) | 160 |
| Included Accessories | Test lead (TL-25a: total length approx. 1.1 m, pin tip 18 mm), K-type thermocouple temperature sensor (K-250CD: total length approx. 2 m), instruction manual |
| Length (mm) | 44 |
| Mass (g) | About 360 |
| Operation Environment | 5 to 40°C, humidity as follows, no condensation: 80%RH (max) from 5°C to 31°C, linear decrease from 80%RH to 50%RH from 31°C to 40°C |
| Part Number | CD772 (with calibration book, traceability system diagram, and test report) |
| Power Supply | R6P (AA battery) 1.5V x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 400/4k/40k/400k/4M/40 |
| Safety Standard | IEC61010 CAT.III600V/CAT.II1000V |
| Sample Rate (time/s) | 3 |
| Temperature (°C) | -20 to 300 (with K-type sensor) |
| Type | Digital Multimeters |
| Width (mm) | 82 |
