Capacitor capacity and frequency can also be measured.
Impact-resistant elastomer is used for the outer circumference of the main body / auto power off function (about 30 minutes)
R & D / equipment maintenance
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

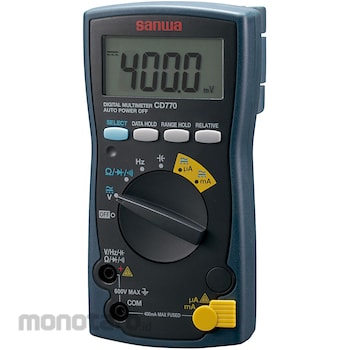

Sanwa Electric Instrument Digital Multimeters
#Grup produk P113744934
Spesifikasi
| AC Current (A) | 400μ/4000μ/40m/400m |
|---|---|
| AC Voltage (V) | 4/40/400/600 |
| Battery Life (hour) | Approximately 400 continuous DCV (manganese battery) |
| Built-in Fuse | F1176 0.5A/250V/IR1.5kA DIA5x20mm ceramic tube |
| Calibration Certificate | General calibration |
| Capacitor Capacitance (F) | 50n/500n/5μ/50μ/100μ |
| Continuity Check | Buzzer sound from 0 to 85Ω (± 45Ω) Open circuit voltage: Approximately 0.4V |
| DC Current (A) | 400μ/4000μ/40m/400m |
| DC Voltage (V) | 400m/4/40/400/600 |
| Dimensions (H x W x D) (mm) | 166x82x44 |
| Dimensions, Width W x Height H x Depth D (mm) | 82x166x44 |
| Diode Test | Open voltage: about 1.5V |
| Display | Numerical value: 4000 |
| Frequency (Hz) | 5/50/500/5k/50k/100k |
| Frequency Characteristic | 40~400Hz (sine wave) |
| Height (mm) | 166 |
| Included Accessories | Test lead (TL-21a: total length approx. 1m/pin tip 18mm), instruction manual |
| Length (mm) | 44 |
| Mass (g) | About 340 |
| Operation Environment | 5 to 40°C, humidity as follows, no condensation, 80%RH (max) at 5 to 31°C, linear decrease from 80%RH to 50%RH at 31°C to 40°C |
| Part Number | CD770 (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | R6P (AA battery) 1.5V x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 400/4K/40K/400K/4M/40M |
| Safety Standard | IEC61010 CAT.III600V/CAT.II1000V |
| Sample Rate (time/s) | 3 |
| Type | Digital Multimeters |
| Width (mm) | 82 |
