11000 count display / maximum accuracy 0.28% (DCV) / truly effective value correspondence (AC)
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

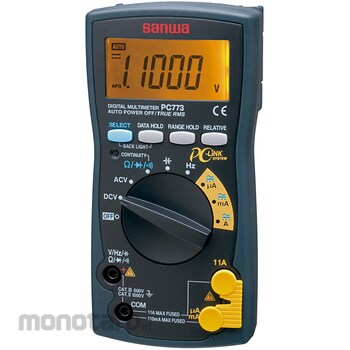

Sanwa Electric Instrument Digital multimeter
#Grup produk P113744819
Spesifikasi
| AC Current (A) | 110μ/1100μ/11m/110m/11 |
|---|---|
| AC Voltage (V) | 110m/1.1/11/110/1000 |
| Built-in Fuse | F1206 (315mA/1000V DIA6.35 x 32mm ceramic tube) x 1, F1207 (12A/1000V DIA10 x 38mm ceramic tube) x 1 |
| DC Current (A) | 110μ/1100μ/11m/110m/11 |
| DC Voltage (V) | 110m/1.1/11/110/1000 |
| Dimensions, Width W x Height H x Depth D (mm) | 82x166x44 |
| Diode Test | Open circuit voltage: Almost battery voltage |
| Frequency (Hz) | 110/1100/11k/110k/1.1M |
| Height (mm) | 166 |
| Included Accessories | Test lead (TL-25a: total length about 1.1m/pin tip 18mm), instruction manual |
| Length (mm) | 44 |
| Mass (g) | About 360 |
| Operation Environment | 5 °C ~ 40 °C Humidity is as follows, and there should be no condensation. It decreases linearly from 80% RH (maximum) at 5 ° C to 31 ° C and from 80% RH to 50% RH at 31 ° C to 40 ° C. |
| Part Number | PC773 (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | R6 (AA type) 1.5V x 2 |
| Resistance (Ω) | 110/1.1k/11k/110k/1.1M/11M/110M |
| Safety Standard | IEC61010CAT.III600V/CAT.II1000V |
| Type | Digital Multimeters |
| Width (mm) | 82 |
