Parallel / serial mode switchable
L / C / R parameters are automatically selected and measured in the optimum range Test frequency: 100 / 120Hz, 1/1 / 100kHz
D (loss factor), Q (quality coefficient), θ (phase angle) can be measured
Data can be edited on a PC via USB / RS232 connection (sold separately)
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

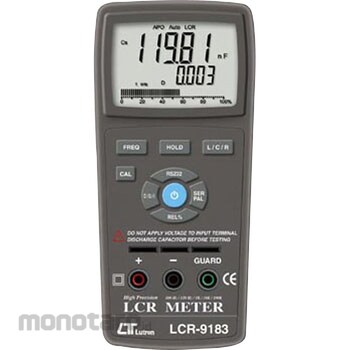

Mother Tool Digital LCR meter
#Grup produk P113744590
Sebelum PPN:
Rp4.199.900 - Rp9.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Battery Life (hour) | About 20 |
|---|---|
| Capacitance (F) | 20pF/200pF/2000pF/20nF/200nF/2000nF/20μF/200μF/2000μF/20mF |
| Dimensions, Width W x Height H x Depth D (mm) | 88x193x41 |
| Display | Main display 19999 count, Sub display 1999 count |
| Included Accessories | Test clip (red/black), manual, battery |
| Inductance (H) | 20μH/200μH/2000μH/20mH/200mH/2000mH/20H/200H/2000H |
| Mass (g) | About 390 |
| Measurement Mode | Serial/parallel mode |
| Operation Environment | 0 to 50 ° C 70% RH or less (no condensation) |
| Parameters | L (inductance), C (capacitance), R (resistance), D (loss factor), Q (quality factor), θ (phase angle), ESR |
| Power Supply | 006P(9V)x1 |
| Resistance | 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ |
| Storage Environment | 0-60 ° C 80% RH or less (no condensation) |
