This is an easy-to-use handheld 2-channel oscilloscope.
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

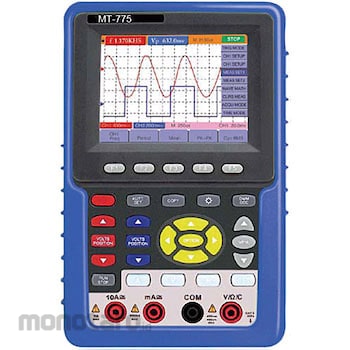

Mother Tool Digital Handheld Oscilloscope
#Grup produk P113744396
Sebelum PPN:
Rp13.999.900 - Rp18.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Current (A) | [Range] 40m to 20, [Accuracy] 1.5%rdg+2dgt (40 to 400mA) |
|---|---|
| AC Voltage (V) | [Range] 4 to 400, [Accuracy] 1.0%rdg+5dgt (40 to 400Hz) |
| Coupling | AC/DC |
| DC Current (A) | [Range] 40m to 20, [Accuracy] 1.5%rdg+2dgt (40 to 400mA) |
| DC Voltage (V) | [Range] 400m to 400m, [Accuracy] 1.0%rdg+2dgt |
| Dimensions, Width W x Height H x Depth D (mm) | 118(W)x180(H)x40(D) |
| Frequency band (MHz) | 60 |
| Height (mm) | 186 |
| Included Accessories | CD-R for PC operation, USB cable, portable aluminum case, oscilloscope probe x 2, calibration probe x 1, AC adapter, 20A measurement adapter, capacitance measurement adapter, instruction manual |
| Input Impedance | 1MΩ |
| Length (mm) | 45 |
| Mass (g) | About 680 |
| Number of Channels | (Input) 2 channels + digital multimeter function |
| Power Source | AC adapter, rechargeable lithium battery |
| Resistance (Ω) | [Range] 400 to 40M, [Accuracy] 1.0%rdg+5dgt (400 to 4MΩ) |
| Sampling | Up to 250 MS/S |
| Trigger | Edge (Normal/Single Shot/Auto), Video |
| Width (mm) | 122 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationMaximum recording length/6000 points per input
