Lightweight AC1000A measurement type, logo ski coil (air core) adopted, very lightweight / Φ42mm large diameter / large liquid crystal adopted
Electrical work / equipment maintenance
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

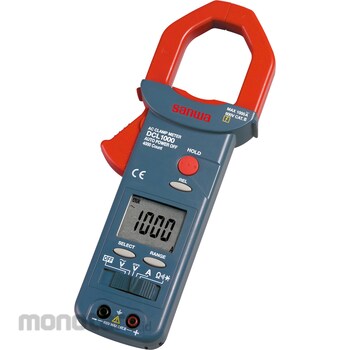

Sanwa Electric Instrument Digital clamp meter
#Grup produk P113744156
Spesifikasi
| AC Current (A) | 400/1000 |
|---|---|
| AC Voltage (V) | 400m/4/40/400/600 |
| Continuity Check | Buzzer sound from 0 to 65Ω (± 55Ω) Open circuit voltage: Approximately 0.4V |
| DC Voltage (V) | 400m/4/40/400/600 |
| Dimensions, Width W x Height H x Depth D (mm) | 95x238x45 |
| Diode Test | Open voltage: about 1.6V |
| Height (mm) | 238 |
| Included Accessories | Test lead (TL-23a: total length about 1.1m/pin tip 18mm), carrying case (C-DCL1000), instruction manual |
| Length (mm) | 45 |
| Mass (g) | About 290 |
| Operation Environment | 5 ° C to 40 ° C (no condensation) 80% RH from 5 ° C to 31 ° C or less Linearly decreases from 80% RH to 50% RH from 31 ° C to 40 ° C |
| Part Number | DCL1000 (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | R03 (AAA) 1.5V x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 400/4K/40K/400K/4M/40M |
| Safety Standard | IEC61010CAT.III600V |
| Type | Clamp meter |
| Width (mm) | 95 |
