Equipped with a shock-resistant tote band meter that is hard to break even if dropped.
Zero center meter measurement function that can measure the power supply of ± 2 systems.
Double protection function of fuse and diode that protects the circuit from overvoltage.
With check range of manganese battery. With an inclined stand that makes it easy to see the runout of the meter.
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

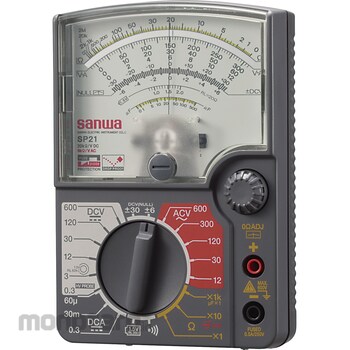

Sanwa Electric Instrument Analog Multimeter (With Hard Case)
#Grup produk P113740354
Spesifikasi
| AC Voltage (V) | 12/30/120/300/600 |
|---|---|
| Battery Check | 1.5V for 2V range (RL=20Ω) |
| Built-in Fuse | New model: F0301 0.5A/250V/IR35A DIA5x20mm glass tube, old model: F0305 0.5A/250V/IR300A DIA6.3x30mm glass tube |
| Capacitor Capacitance (F) | 500μ (approximate value) |
| DC Current (A) | 60μ/30m/0.3 |
| DC Voltage (V) | 0.3/3/12/30/120/600 |
| Dimensions (H x W x D) (mm) | 144x99x41 |
| Dimensions, Width W x Height H x Depth D (mm) | 99x144x41 |
| Frequency Characteristic | AC12V range 40Hz to 100kHz: Fluctuation value within ±3% |
| Height (mm) | 165 |
| Included Accessories | Test lead (TL-21a: total length approx. 1m/pin tip 18mm), carrying case (C-SPH), spare fuse (F0301), instruction manual |
| Length (mm) | 46 |
| Mass (g) | About 270 |
| Operation Environment | 3 to 43°C, 80% RH or less (no condensation) |
| Part Number | SP21/C (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | R6P (AA battery) 1.5V x 2 |
| Resistance (Ω) | 2k/20k/2M |
| Type | Analog multi tester |
| Width (mm) | 106 |
