Mirror scale adopted for scale plate Equipped with basic measurement functions for DC voltage, AC voltage, DC current, and resistance measurement With continuity check buzzer A sturdy hard case (C-CP8) with excellent storage and portability is included as standard. Circuit protection with diode The test lead uses a test lead pin tip (18 mm) that takes into consideration measurement with a removable plug-type waterproof outlet. The hard case is equipped with a dedicated storage section for the test pin cap.
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

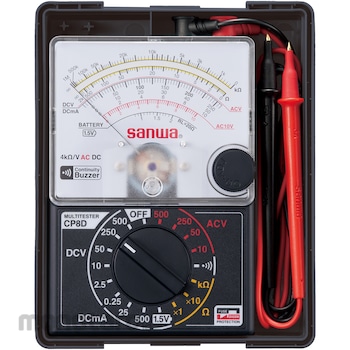

Sanwa Electric Instrument Analog Multimeter
#Grup produk P113740336
Spesifikasi
| AC Voltage (V) | 10/50/250/500 |
|---|---|
| Battery Check | For 1.5V (RL=20Ω) |
| Built-in Fuse | F0301 0.5A/250V/IR35A DIA5x20mm Glass tube |
| Continuity Check | Buzzer sounds at approximately 100 Ω or less, open voltage approximately 1.5 V |
| DC Voltage (V) | 0.25/2.5/10/50/250/500 |
| DC current (mA) | 0.25/25/500 |
| Dimensions (H x W x D) (mm) | 119x82x26 |
| Dimensions, Width W x Height H x Depth D (mm) | 82x119x26 |
| Height (mm) | 119 |
| Included Accessories | Test lead (TL-38) x 1 set, instruction manual x 1 copy, carrying case (C-CP8) x 1 |
| Length (mm) | 26 |
| Mass (g) | About 170 |
| Operation Environment | 5 to 40°C, 80% RH or less (no condensation) |
| Part Number | CP8D (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | R6, LR6 (AA size) x 1 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 2k/20k/1M |
| Type | Analog multi tester |
| Width (mm) | 82 |
