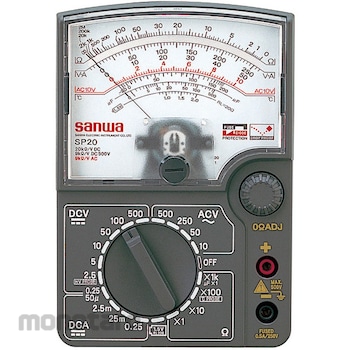

Sanwa Electric Instrument Analog Multimeter
#Grup produk P113740318
Spesifikasi
| AC Voltage (V) | 10/50/250/500 |
|---|---|
| Battery Check | 1.5V for 2V range (RL=20Ω) |
| Built-in Fuse | F0305 0.5A/250V/IR300A DIA6.3x30mm Glass Tube |
| DC Current (A) | 50μ/2.5m/25m/0.25 |
| DC Voltage (V) | 0.25/2.5/5/10/50/100/500 |
| Dimensions (H x W x D) (mm) | 144x99x41 |
| Dimensions, Width W x Height H x Depth D (mm) | 99x144x41 |
| Frequency Characteristic | AC10V range 40Hz to 100kHz: Fluctuation value within ±3% |
| Height (mm) | 144 |
| Included Accessories | Test lead (TL-61: total length approx. 0.9 m/pin tip 19 mm), spare fuse (F0305), carrying case (C-SPH), instruction manual |
| Length (mm) | 41 |
| Mass (g) | About 270 |
| Operation Environment | 3 to 43°C, 80% RH or less (no condensation) |
| Part Number | SP20/C (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | R6P (AA battery) 1.5V x 2 |
| Resistance (Ω) | 2k/20k/200k/2M |
| Temperature (°C) | -20 to 200 (using separately sold probe T-THP) |
| Type | Analog multi tester |
| Width (mm) | 99 |
