Visibility is improved by color-coding the scale scale and the range used.
With continuity confirmation buzzer range.
With a stand function that makes the scale easy to see
Can measure up to DCA30A (DCA300A with optional clamp).
Battery check (12V only)
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

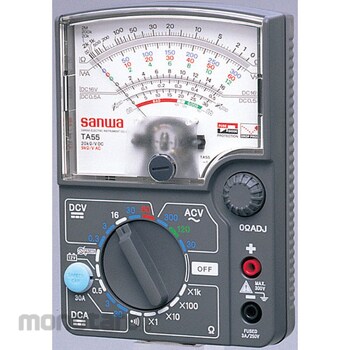

Sanwa Electric Instrument Analog multi tester
#Grup produk P113740257
Spesifikasi
| AC Voltage (V) | 30/120/300 |
|---|---|
| Battery Check | For 12V in-vehicle battery |
| Built-in Fuse | F0020 3A/250V/IR300A DIA6.4x30mm Glass Tube |
| Continuity Check | Buzzer sounds at approximately 70 Ω or less, open voltage approximately 3 V |
| DC Current (A) | 0.5/3/30 |
| DC Voltage (V) | 0.3/3/16/30/60 |
| Dimensions (H x W x D) (mm) | 142x97x38 |
| Dimensions, Width W x Height H x Depth D (mm) | 97x142x38 |
| Frequency Characteristic | 40 to 5kHz: Fluctuation value within ±3% |
| Height (mm) | 142 |
| Included Accessories | Test lead (TL-91: total length approx. 0.9m/pin tip 19mm), spare fuse (F0020), instruction manual |
| Length (mm) | 38 |
| Mass (g) | About 300 |
| Operation Environment | 3 to 43°C, 80% RH or less (no condensation) |
| Part Number | TA55 (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | R6P (AA battery) 1.5V x 2 |
| Resistance (Ω) | 2k/20k/200k/2M |
| Type | Analog multi tester |
| Width (mm) | 97 |
