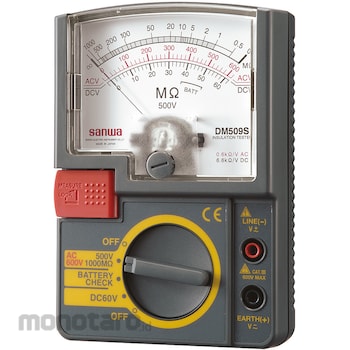

Sanwa Electric Instrument Analog insulation resistance tester
#Grup produk P113740132
Spesifikasi
| AC Voltage (V) | 600 (Tolerance: Within ± 5% of maximum scale value [Sine wave AC/50-60Hz]) |
|---|---|
| Calibration Certificate | General calibration |
| DC Voltage (V) | 60 (Tolerance: within ± 5% of maximum scale value) |
| Dimensions (H x W x D) (mm) | 144x99x43 |
| Dimensions, Width W x Depth D x Height H (mm) | 99x43x144 |
| Included Accessories | Test lead set, carrying case |
| Mass (g) | About 310 |
| Part Number | DM509S (with calibration certificate, test report, and traceability system diagram) |
| Power Supply | 6LF22/6LR61 (9V alkaline battery) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Voltage (V) | 1000 |
| Safety Standard | IEC61010CAT.III600V |
| Scale | 1~2~1000~2000MΩ |
| Type | Analog insulation resistance tester |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
500V / 1000MΩ single range type lightweight design Maintains measured voltage up to low insulation resistance value (MΩ) at the rated current specified by JIS C 1302 DC voltage measurement range (DC60V) with insulation resistance measurement switch capable of single-shot and continuous measurement Discharge (Discharge) function Built-in battery capacity inner battery check function AC voltage measurement function that can determine the active line status With a neck strap that can be used with both hands when measuring
