The indicator circuit adopts a phase detection method, which enables highly accurate measurement. In order to prevent instruction error due to leakage current to the ground, it comes with a dedicated range that can measure ground voltage.
No need for self-calibration for each measurement.
Measurement of the ground resistance of a building.
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

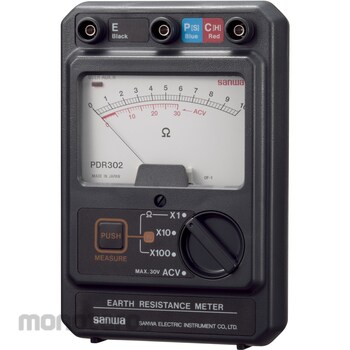

Sanwa Electric Instrument Analog ground resistance meter
#Grup produk P113740099
Spesifikasi
| Calibration Certificate | General calibration |
|---|---|
| Dimensions (H x W x D) (mm) | 175x118x55 |
| Dimensions, Width W x Height H x Depth D (mm) | 118x175x55 |
| Ground Resistance (ohm) | Measurement range: 10/100/1000 |
| Height (mm) | 175 |
| Included Accessories | Measurement cord (TL-66 black about 5m, blue about 10m, red about 20m), alligator clip (CL-302), grounding rod (CL-ER), carrying case (C-PDR302), storage bag (C-302CB) ),instruction manual |
| Length (mm) | 55 |
| Mass (g) | About 500 |
| Measurement Method | Constant current method (grounding resistance) |
| Measuring Range | 10/100/1000 |
| Operation Environment | 0 to 40°C, 80% RH or less (no condensation) |
| Part Number | PDR302 (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | R6P (AA battery) 1.5V x 6 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Type | Analog ground resistance meter |
| Width (mm) | 118 |
