With DC5000mA range. Convenient for measuring dark currents in automobiles and other minute DC currents.
Maintenance and inspection of automobile electrical system
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

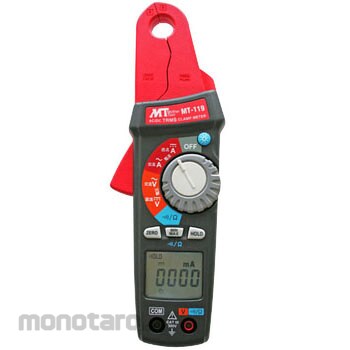

Mother Tool AC/DC clamp meter for automotive dark current measurement
#Grup produk P113739376
Sebelum PPN:
Rp5.399.900 - Rp8.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Current (A) | [Range] 5000m [Resolution] 1m [Accuracy] ±1.8% + 5dgt (40-1kHz), [Range] 50 [Resolution] 1m [Accuracy] ±1.8% + 5dgt (40-1kHz), [Range] 100 [Resolution] 0.01 [Accuracy] ±5.0% + 5dgt (40-1kHz) |
|---|---|
| AC Voltage (V) | [Range] 50 [Resolution] 0.01 [Accuracy] ±1.2% + 5 dgt (40-1 kHz), [Range] 300 [Resolution] 0.1 [Accuracy] ±1.2% + 5 dgt (40-1 kHz) |
| Automatic Power Off | About 30 minutes after final operation |
| Battery Life (hour) | ACA range 30, ACV range 60, DCV range 100 (alkaline batteries) |
| Continuity Check | Continuity buzzer: 40Ω or less sounds ON, 120Ω or more sounds OFF |
| DC Current (A) | [Range] 5000m [Resolution] 1m [Accuracy] ±1.8% + 5dgt, [Range] 50 [Resolution] 0.01 [Accuracy] ±1.8% + 5dgt, [Range] 100 [Resolution] 0.01 [Accuracy] ±5.0% + 5dgt |
| DC Voltage (V) | [Range] 50 [Resolution] 0.01V [Accuracy] ±1.0% ±2dgt, [Range] 300 [Resolution] 0.1 [Accuracy] ±1.0% ±2dgt |
| Dimensions, Width W x Height H x Depth D (mm) | 72x220x35 |
| Display | 5000 counts, character height 10mm |
| Height (mm) | 220 |
| Included Accessories | Carrying case, test leads, 2 x AAA batteries (1.5V) (trial batteries), instruction manual |
| Length (mm) | 35 |
| Mass (g) | 210 (including battery) |
| Operating Humidity Range | 80% RH or less (no condensation) |
| Operating Temperature Range (°C) | 0~40 |
| Power Supply | 2 x AAA batteries (1.5V) |
| Resistance (Ω) | [Range] 500Ω [Resolution] 0.1Ω [Accuracy] ± 1.0% ± 2dgt, [Range] 5kΩ [Resolution] 1Ω [Accuracy] ± 1.0% ± 2dgt, [Range] 50kΩ [Resolution] 10Ω [Accuracy] ± 1.0% ± 2dgt, [Range] 500kΩ [Resolution] 100Ω [Accuracy] ± 1.0% ± 2dgt |
| Sampling Speed | 2 times/sec |
| Storage Humidity Range | 70% RH or less (no condensation) |
| Storage Temperature Range (°C) | ~50 |
| Width (mm) | 72 |
