Capable of measuring up to 600.0A AC/DC Capable of measuring true rms values Equipped with a peak hold function LCD is equipped with a backlight
Maintenance of power and equipment
If the delivery destination is a private house (detached house / apartment house), the shop name is required. Please note that delivery may not be possible if there is no store name. * Depending on the delivery location, the delivery date may be postponed and additional shipping charges may be incurred. * The driver will not assist in unloading. * Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders on the web.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

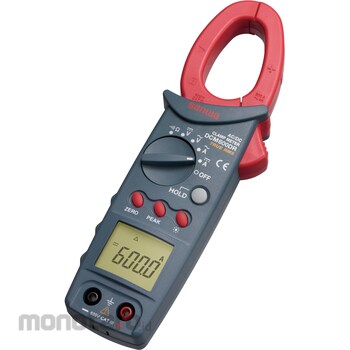

Sanwa Electric Instrument AC/DC clamp meter
#Grup produk P113739312
Spesifikasi
| AC Current (A) | 60/600 |
|---|---|
| AC Voltage (V) | 600 |
| Battery Life (hour) | Approximately 40 continuous times (backlight off) |
| Calibration Certificate | General calibration |
| Conductor Size (mm) | 10x50 |
| Continuity Check | Buzzer sound at 40Ω or less Open voltage approx. 2.9V |
| DC Current (A) | 60/600 |
| DC Voltage (V) | 600 |
| DC Vurrent | 60/600 |
| Digit Number of Display | 6000 |
| Dimensions (H x W x D) (mm) | 208x69x38 |
| Dimensions, Width W x Height H x Depth D (mm) | 69x208x38 |
| Feature | Measures up to AC/DC 600A. True RMS detection method allows measurement of distorted waveforms. Peak hold function (1 ms). Relative function (relative value display), data hold. Auto power save (approx. 30 minutes) can be disabled. Backlight. |
| Frequency Characteristic | 50~500Hz |
| Height (mm) | 208 |
| Included Accessories | Test lead: TL-23a (total length approx. 1.1 m/pin tip 18 mm), carrying case: C-DCM660, instruction manual |
| Length (mm) | 38 |
| Mass (g) | About 260 |
| Operation Environment | 5 to 40°C (no condensation) 5 to 31°C: 80% RH or less. 31 to 40°C: Linearly decreasing from 80% RH to 50% RH |
| Part Number | DCM600DR (with calibration book, traceability system diagram, and test report) |
| Power Supply | LR03 (AAA alkaline) x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 999.9 |
| Safety Standard | IEC61010 CAT.III600V |
| Sample Rate (time/s) | 3 (number part) |
| Type | Clamp meter |
| Width (mm) | 69 |
