Digital clamp meter for alternating current / voltage.
True effective value correspondence.
The clamp can measure up to Φ25 mm.
Equipped with a data hold button.
AC current measurement for electric distribution boards, etc.
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

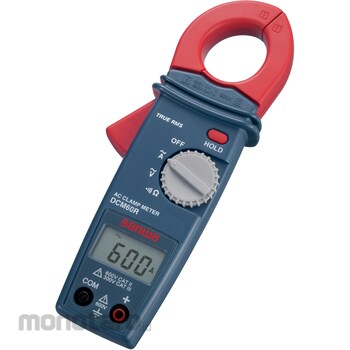

Sanwa Electric Instrument AC clamp meter
#Grup produk P113739172
Spesifikasi
| AC Current (A) | 199.9/600 |
|---|---|
| AC Voltage (V) | 199.9/600 |
| Battery Life (hour) | About 250 |
| Digit Number of Display | 1999 |
| Dimensions (H x W x D) (mm) | 187x50x29 |
| Dimensions, Width W x Height H x Depth D (mm) | 50x187x29 |
| Frequency Characteristic | 50~400Hz |
| Height (mm) | 187 |
| Included Accessories | Test lead (TL-21a: total length approx. 1m/pin tip 18mm), carrying case (C-DCM60L), instruction manual |
| Length (mm) | 29 |
| Mass (g) | About 210 |
| Operation Environment | 5 to 40°C (no condensation) 5 to 31°C: 80% RH or less. 31 to 40°C: Linearly decreasing from 80% RH to 50% RH |
| Part Number | DCM60R (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | R03 (AAA) 1.5V x 2 |
| Resistance (Ω) | 199.9 |
| Sample Rate (time/s) | About 2 |
| Type | Clamp meter |
| Width (mm) | 50 |
