Can measure up to 660.0A True effective value can be measured (AC)
Inrush current can be measured
MAX / MIN hold function The liquid crystal part is equipped with a backlight
Maintenance of power and equipment
If the delivery destination is a private house (detached house / apartment house), the shop name is required. Please note that delivery may not be possible if there is no store name. * Depending on the delivery location, the delivery date may be postponed and additional shipping charges may be incurred. * The driver will not assist in unloading. * Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders on the web.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

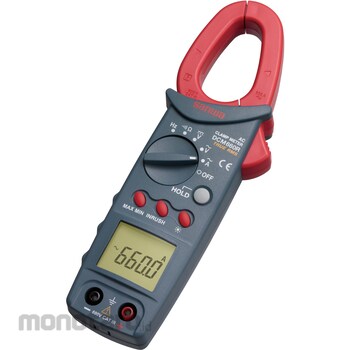

Sanwa Electric Instrument AC clamp meter
#Grup produk P113739154
Spesifikasi
| AC Current (A) | 66/660 |
|---|---|
| AC Voltage (V) | 600 |
| Continuity Check | Buzzer sound at 30Ω or less Open voltage approx. 1.2V |
| DC Voltage (V) | 600 |
| Dimensions, Width W x Height H x Depth D (mm) | 69x208x38 |
| Frequency (Hz) | (Current) 660/6.6k/30k (Voltage) 660/6.6k/66k/100k |
| Height (mm) | 208 |
| Included Accessories | Test lead: TL-23a (total length about 1.1m/pin tip 18mm), carrying case: C-DCM660, instruction manual |
| Length (mm) | 38 |
| Mass (g) | About 265 |
| Operation Environment | 5 ° C to 40 ° C (no condensation) 80% RH from 5 ° C to 31 ° C or less Linearly decreases from 80% RH to 50% RH from 31 ° C to 40 ° C |
| Part Number | DCM660R (with calibration book, traceability system diagram, and test report) |
| Power Supply | LR03 (AAA) 1.5VX2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 660 |
| Safety Standard | IEC61010 CAT.III600V |
| Type | Clamp meter |
| Width (mm) | 69 |
