4000 counts / 42 segments with analog bar graph In addition to frequency measurement by test lead, frequency measurement by clamp is also possible Data hold function that fixes the measured value with one touch Auto power off Battery consumption display that automatically turns off in about 30 minutes Functional continuity buzzer
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

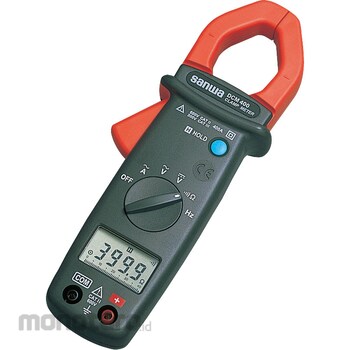

Sanwa Electric Instrument AC clamp meter
#Grup produk P113739136
Spesifikasi
| AC Current (A) | 40/400 |
|---|---|
| AC Voltage (V) | 400/600 |
| Battery Life (hour) | Continuous use: Approx. 150 (manganese battery) |
| Calibration Certificate | General calibration |
| Conductor Size (mm) | 10x34 |
| Continuity Check | Buzzer sounds at 40Ω or less Open voltage: Approx. 1.5V |
| DC Voltage (V) | 400/600 |
| Digit Number of Display | 4000 |
| Dimensions (H x W x D) (mm) | 193x50x28 |
| Dimensions, Width W x Height H x Depth D (mm) | 50x193x28 |
| Feature | 4000 counts/42 segment analog bar graph Frequency measurement (clamp and test lead) Data hold Continuity buzzer Auto power off (approx. 30 minutes) cannot be canceled Battery consumption display function |
| Frequency (Hz) | (Current) 20-4k/10k, (Voltage) 4k/40k/400k/1M |
| Frequency Characteristic | ACA 50/60Hz:±(1.9%+5) 60~500Hz:±(2.5%+5),ACV 50~500Hz:±(1.5%+5) |
| Height (mm) | 28 |
| Included Accessories | Test lead (TL-23a: total length approx. 1.1m/pin tip 18mm), carrying case (C-DCM400), instruction manual |
| Length (mm) | 193 |
| Mass (g) | About 230 |
| Operation Environment | 5 to 40°C (no condensation) 5 to 31°C: 80% RH or less. 31 to 40°C: Linearly decreasing from 80% RH to 50% RH |
| Part Number | DCM400 (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | R03 (AAA) 1.5V x 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 400 |
| Safety Standard | IEC61010 CAT.III300V CAT.II600V |
| Sample Rate (time/s) | 2 (numerical value section), 20 (bar graph section) |
| Type | Clamp meter |
| Width (mm) | 50 |
