A digital insulation resistance tester with a safety design that complies with JIS C 1302-2002.
All-in-one case integrated dustproof and splashproof (IP54 standard) design.
3 range switching type / large LCD display with backlight / automatic hold function for the last measured value.
equipment maintenance
If the delivery destination is a private house (detached house / apartment house), the shop name is required. Please note that delivery may not be possible if there is no store name. * Depending on the delivery location, the delivery date may be postponed and additional shipping charges may be incurred. * The driver will not assist in unloading. * Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders on the web.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

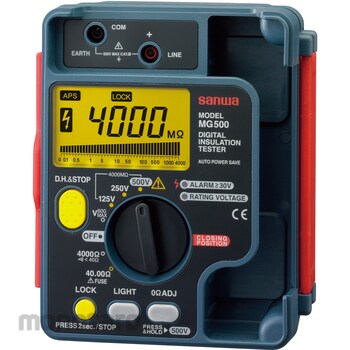

Sanwa Electric Instrument 3 Range Digital Insulation Resistance Tester
#Grup produk P113737518
Sebelum PPN:
Rp5.599.900 - Rp5.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Voltage (V) | 600 (AC/DC automatic discrimination) |
|---|---|
| Built-in Fuse | F1202 0.5A/600V DIA6.3x32mm ceramic tube |
| Continuity Check | 40 (short circuit current 200mA or less) |
| DC Voltage (V) | 600 (AC/DC automatic discrimination) |
| Dimensions (H x W x D) (mm) | 170x142x57 |
| Dimensions, Width W x Height H x Depth D (mm) | 142x170x57 |
| Included Accessories | Test lead (TL-112a: total length approx. 1.2m/pin tip 20mm), strap (ST-50), instruction manual |
| Mass (g) | About 600 |
| Operation Environment | 0 to 40°C, humidity 90% or less |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resistance (Ω) | 4000 |
| Safety Standard | IEC61010CAT.III600V |
| Short Circuit Current (mA) | 200 or less |
| Type | Digital insulation resistance tester |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationLive wire check: Test not possible with 30V AC/DC or more, buzzer sounds and ALARM lights up
