JIS-compliant 3-range switching type / Scale is a simple scale that is easy to read / Equipped with a test switch that enables single-shot / continuous / Equipped with a discharge function that discharges voltage after measurement
Electrical work, maintenance of equipment, etc.
* Products with proofreading cannot be canceled after ordering. * For products with calibration documents and traceability system diagrams, we can only accept orders online.
* Documents applicable only to products that include (with JCSS calibration certificate), (with general calibration certificate / traceability system diagram), and (with calibration certificate / traceability system diagram) in the product number are attached.

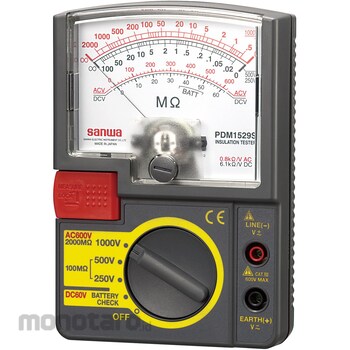

Sanwa Electric Instrument 3 range analog insulation resistance meter
#Grup produk P113737493
Spesifikasi
| AC Voltage (V) | 600 (Tolerance: Within ± 5% of maximum scale value [Sine wave AC/50-60Hz]) |
|---|---|
| DC Voltage (V) | 60 (Tolerance: within ± 5% of maximum scale value) |
| Dimensions (H x W x D) (mm) | 144x99x43 |
| Dimensions, Width W x Height H x Depth D (mm) | 99x144x43 |
| Height (mm) | 144 |
| Included Accessories | Test lead (TL-509S: total length about 1.2m), carrying case (C-09S), instruction manual |
| Insulation Resistance (ohm) | 1000V:2000M 500C/250V:100M |
| Length (mm) | 43 |
| Mass (g) | About 310 |
| Operation Environment | 0 to 40°C, humidity 90% or less |
| Part Number | PDM1529S (with calibration certificate, traceability system diagram, and test report) |
| Power Supply | 6LF22/6LR61 (9V alkaline battery) x 1 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Voltage (V) | 1000/500/250 |
| Safety Standard | IEC61010CAT.III600V |
| Type | Analog insulation resistance tester |
| Width (mm) | 99 |
