Frequency Bandwidth: 25MHz, 2 channels. Sample Rate: Max. 100M samples/sec. Vertical Resolution: 8 bits. Record Length: 5k. Supports SCPI commands. Interface: USB (VDS1022), Isolated USB (VDS1022I)
Waveform analysis, observation of high-speed phenomena, observation of transient phenomena, electrical measurement, inspection, bug analysis

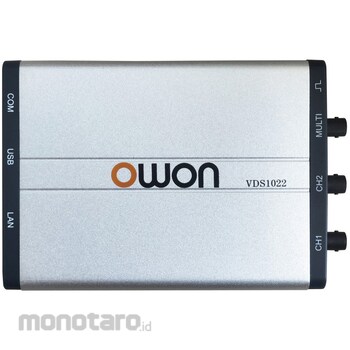

Owon 25MHz, 2ch, 100MS/s, 5k PC-connectable oscilloscope
#Grup produk P113737457
Sebelum PPN:
Rp1.999.900 - Rp2.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Frequency band (MHz) | 25 |
|---|---|
| Function | Trigger output, trigger input, pass/fail |
| Mass (kg) | About 0.26 |
| Memory Length | 5K |
| Number of Channels | 2ch |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 170x120x18 |
| Power Consumption (W) | ≤2.5 |
| Power Supply | 5.0V/1A |
| Resolution | Vertical resolution: 8 bits |
| Sample Rate | 100M samples/s |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationHorizontal scale: 5ns/div to 100s/div, steps 1 to 2 to 5 Vertical resolution: 8 bits Vertical scale: 5mV/div to 6V/div
