Maximum output per channel: 150W, 200W, 300W Output resolution: 10mV/1mA Sequence output: 10 steps 2.8-inch LCD Interface: USB device Supports SCPI commands Dedicated USB charging port for charging mobile devices Compact and lightweight, weighing approximately 1.5kg
Waveform analysis, observation of high-speed phenomena, observation of transient phenomena, electrical measurement, inspection, bug analysis
Owon 1ch, Max 150W, 10mV/1mA Programmable DC Power Supply
#Grup produk P113737332
Sebelum PPN:
Rp2.999.900 - Rp3.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Cooling Method | Temperature Controlled Cooling Fan |
|---|---|

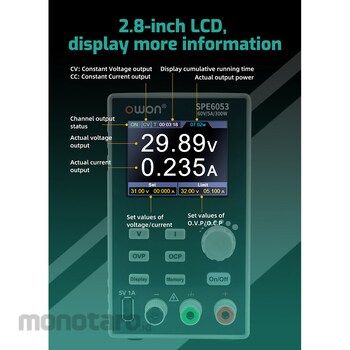

| Display | 2.8 inch TFT LCD |
| Interface | USB device |
| Mass (kg) | About 1.5 |
| Number of Channels | 1 |
| Operating Temperature (°C) | 0-40 |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 82x142x226 |
| Power Supply Voltage Fluctuation | Voltage: ≤30mV, Current: ≤20mA |
| Resolution | Setting/readback: Voltage 10mV, current 1mA |
| Response Time | Transient (50%-100% rated load): ≤1.0ms |
| Temperature Coefficient (°C) | Output (0°C-40°C) Readback: Voltage 100, Current 200 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Ulasan Produk
Tidak ada ulasan
