This 12-bit ADC oscilloscope integrates a 30MHz waveform generator (optional), a 16-channel logic analyzer (optional), a frequency counter, a voltmeter, an FFT analyzer, and a protocol analyzer. The OWON XVision architecture offers low noise, deep memory depth, and a fast waveform update rate. The maximum memory depth is 100M, and the maximum waveform update rate is 700,000 wfms/s, allowing for clear signal capture. Vertical scales range from 200uV/div to 10V/div, with 1M points for FFT analysis, accurately displaying frequency components. Bode plot function (requires optional waveform generator). Supports mouse and keyboard for improved work efficiency. An expanded file manager allows for easy browsing, editing, and saving. Optional Wi-Fi/Bluetooth module supports FTP and network printers. A slim, space-saving design with a 7-inch multi-touch screen for an enhanced operating experience.
Waveform analysis, observation of high-speed phenomena, observation of transient phenomena, electrical measurement, inspection, bug analysis

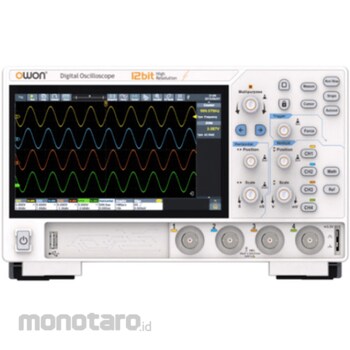

Owon 125-250MHz, 2/4ch, 2GSa/s, 100M, 12bit oscilloscope
#Grup produk P113737013
Sebelum PPN:
Rp10.999.900 - Rp15.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Display | 7 inches |
|---|---|
| Memory Length | (Points) 100M |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resolution | [Vertical] 12bit |
| Sample Rate (time/s) | 2 |
| Wave Form | [Update rate] 700000 wfrms/s |
